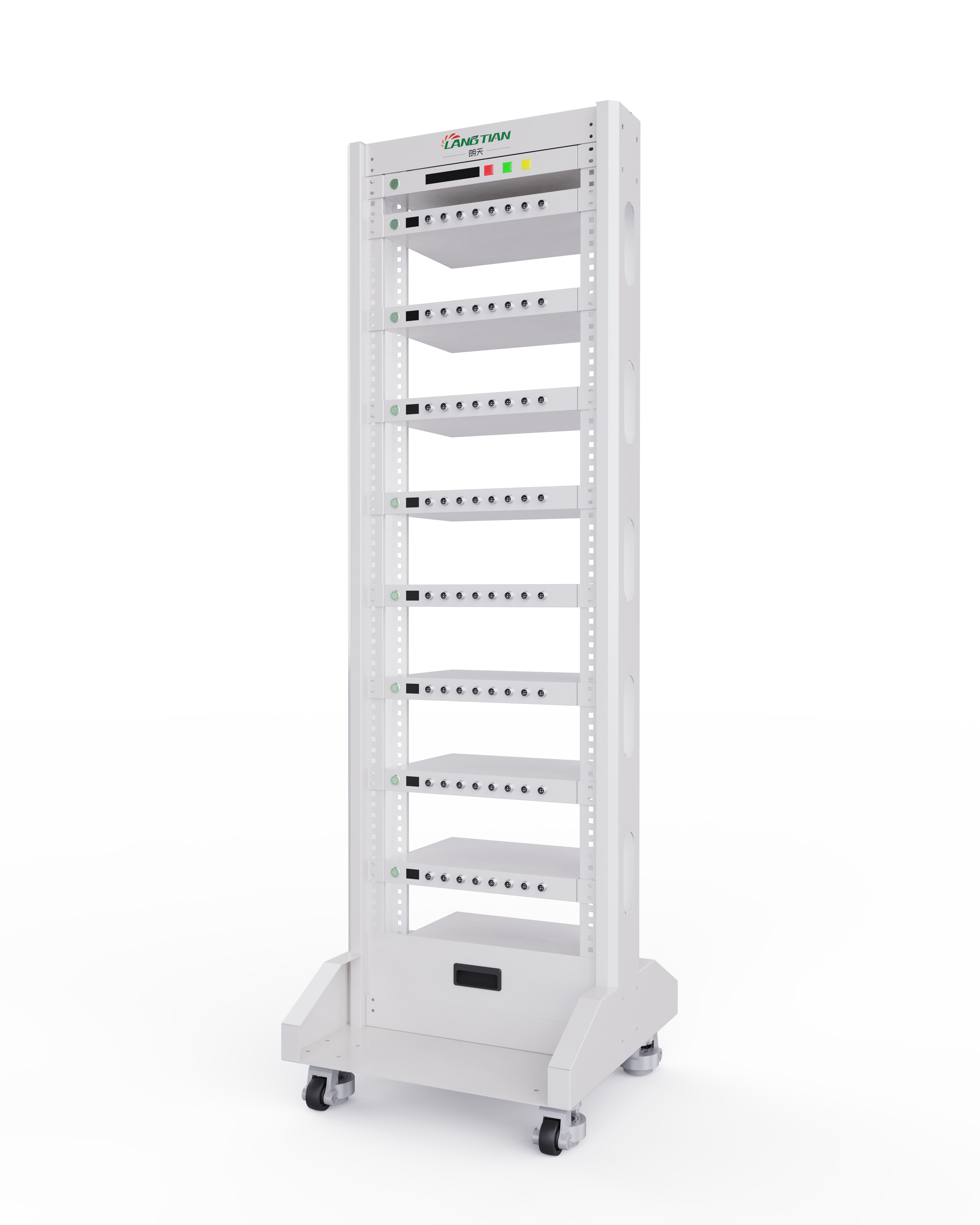

Front view of LCT-5V200mA-16CH lithium battery tester featuring 8 modular battery analyzer units for lab use.
Front view of LCT-5V200mA-16CH battery analyzer with 16 channels in a modular design for coin battery
Side view of LCT-5V200mA-16CH battery testing equipment with 8 channels for coin battery
Front view of LCT-5V200mA-16CH lithium battery tester featuring 8 modular battery analyzer units for lab use.
Front view of LCT-5V200mA-16CH battery analyzer with 16 channels in a modular design for coin battery
Side view of LCT-5V200mA-16CH battery testing equipment with 8 channels for coin battery

SCT-5V200mA-16CH 5V 200mA 8 Channel Battery Testing Equipment for cell battery

$720~$820

Min. Order: 1 piece

  • The LCT-5V200mA-16CH battery tester is designed for the precise evaluation of battery cells in laboratory, educational, and industrial environments.
  • With three measurement ranges and up to 16 independent channels, it allows simultaneous testing of multiple cells at 100mA and 5V.
  • Ideal for 3C digital electronics manufacturers and R&D institutions, this tester ensures accurate performance analysis and reliable quality control of lithium battery cells.
10 customers are viewing this product
Ask an expert
Product Features
  • Triple current range
  • Voltage and current accuracy: ±0.025%FS ±0.025%RD
  • Recording frequency: 10Hz
  • Sampling interval: 100ms
  • Current response time (10%FS–90%FS): <1ms
  • Resolution: 24-bit
  • Offline mode with 1GB storage
  • Supports μA-level current output
  • Safe testing process
  • Secure data protection
Read more
Product Specification
Model SCT-5V200mA-16CH
Current Range 0.02–200mA (3 ranges)
Current Accuracy ±10μA (20mA), ±25μA (50mA), ±0.1μA (200mA)
Voltage Range Charge: 0–4500mV; Discharge: 2000–4500mV
Voltage Accuracy ±0.04% FS
Response Time < 1ms
Sampling Rate 10Hz
Max Power/CH 1W
Stability ±0.1% FS
Charge Modes CC, CV, CC-CV, CP, CR, Pulse
Discharge Modes CC, CV, CC-CV, CP, CR, Pulse
Cut-off Conditions Voltage, Current, Time, Capacity, Energy, -△V
Read more
System Details
  • Suitable for coin cells, small-capacity batteries, small pouch cells, supercapacitors, three-electrode systems, and battery material research; meets diverse testing needs of material manufacturers, universities, and research institutes.
  • Modular design with 16 independent channels per unit.
  • Supports various tests: cycle life testing, rate charge/discharge testing, pulse simulation, GITT testing, DCIR testing, and dQ/dV differential capacity curve analysis.
  • Charge/discharge modes include constant current (CC), constant voltage (CV), constant current–constant voltage (CC–CV), constant power, and constant resistance modes.
  • Equipped with multiple safety protections such as power-off protection, offline testing, and overheat protection.
  • The charge/discharge test system and environmental chamber can be centrally controlled via PC.
Read more
