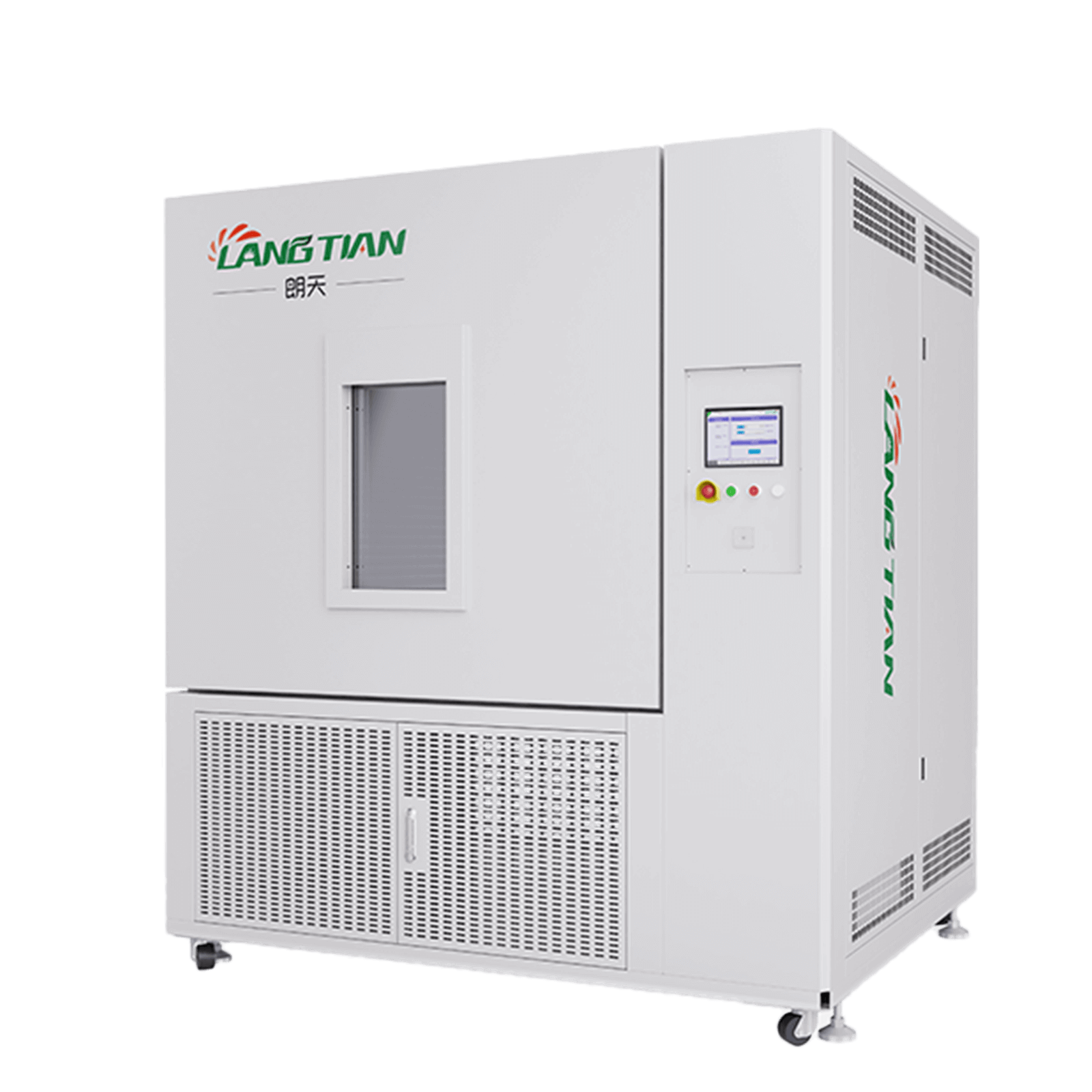

Langtian environmental test chamber 6A 80-channel with 3C digital cylindrical cells for battery capacity tester
Langtian environmental test chamber 6A 80-channel with 3C digital cylindrical cells for battery capacity tester

6A 80CH Environmental Test Chamber 3C Digital Cylindrical Cell

$10,000.00
$10,000.00

Min. Order: 1 piece

Offering 80 independent channels of 5V 6A, this system enables high-efficiency testing of multiple cylindrical cells simultaneously.

10 customers are viewing this product
Ask an expert
Product Features
  • Current & Voltage Accuracy: ±0.025% FS
  • Sampling time: 100ms
  • Number of Channels (Cylinder Cells): 80 CH
  • Ambient Temperature Range: +10°C to 120°C
  • Temperature Accuracy: ±2°C (when stabilized)
  • Temperature Fluctuation: ≤ 1°C
  • Heating Time (from 25°C to 60°C): ≤ 15 minutes
Read more
Product Specification
Model MCT-6A-80CH-T
Number of Channels 80 CH (Customizable)
Channel Current Range 6mA~6A
Current Accuracy ±0.05% of FS
Voltage Range per Channel 25mV~5V
Voltage Accuracy ±0.05% of FS
Current Response Time < 10 ms
Data Logging Frequency 10 Hz
Max Output Power per Channel 60 W
Power Stability ±0.1% of FS
Charging Modes CC, CV, CC-CV, CP
Charging Cut-off Conditions Voltage, Current, Time, Capacity, Energy, -△V
Discharging Modes CC, CV, CC-CV, CP, CR
Discharging Cut-off Conditions Voltage, Current, Time, Capacity, Energy
Ambient Temperature Range +10°C ~ 120°C
Temperature Control Accuracy ±2°C (when stabilized)
Temperature Fluctuation ≤ 1°C
Heating Time (from 25°C to 60°C) ≤ 15 min
Read more
System Details
  • Integrating charge-discharge testing and constant temperature chamber functionality, this system enables efficient and precise testing and research of battery thermal performance. It meets the diverse testing needs of material manufacturers, universities, and research institutions.

  • Supports cycle life testing, constant temperature testing, thermal condition performance testing, and reliability testing

  • Equipped with a modular air regulation channel design

  • Compatible with BTS communication protocol, allowing temperature parameters and step control conditions to be set

  • Comprehensive protection features, including leakage, short circuit, high-temperature fuse, independent redundancy, and over-temperature protection

  • Includes power-off protection, offline testing, and overheating protection

  • The charge-discharge testing system and environmental chamber can be centrally controlled via PC
