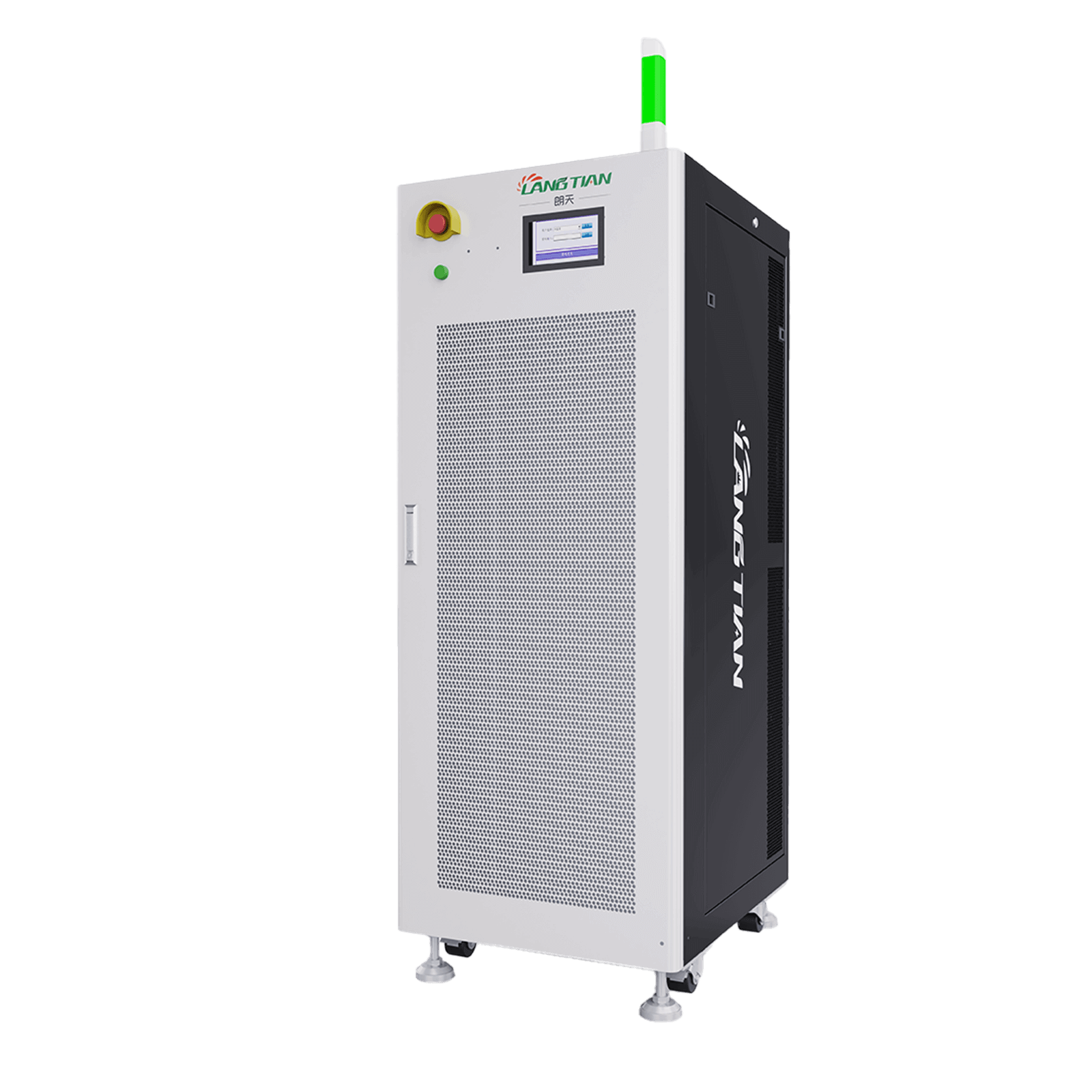

Langtian battery analyzer 200A 8-channel for battery test equipment
Langtian battery analyzer 200A 8-channel for battery test equipment

5V Battery Analyzer 200A 8CH

Min. Order: 1 piece

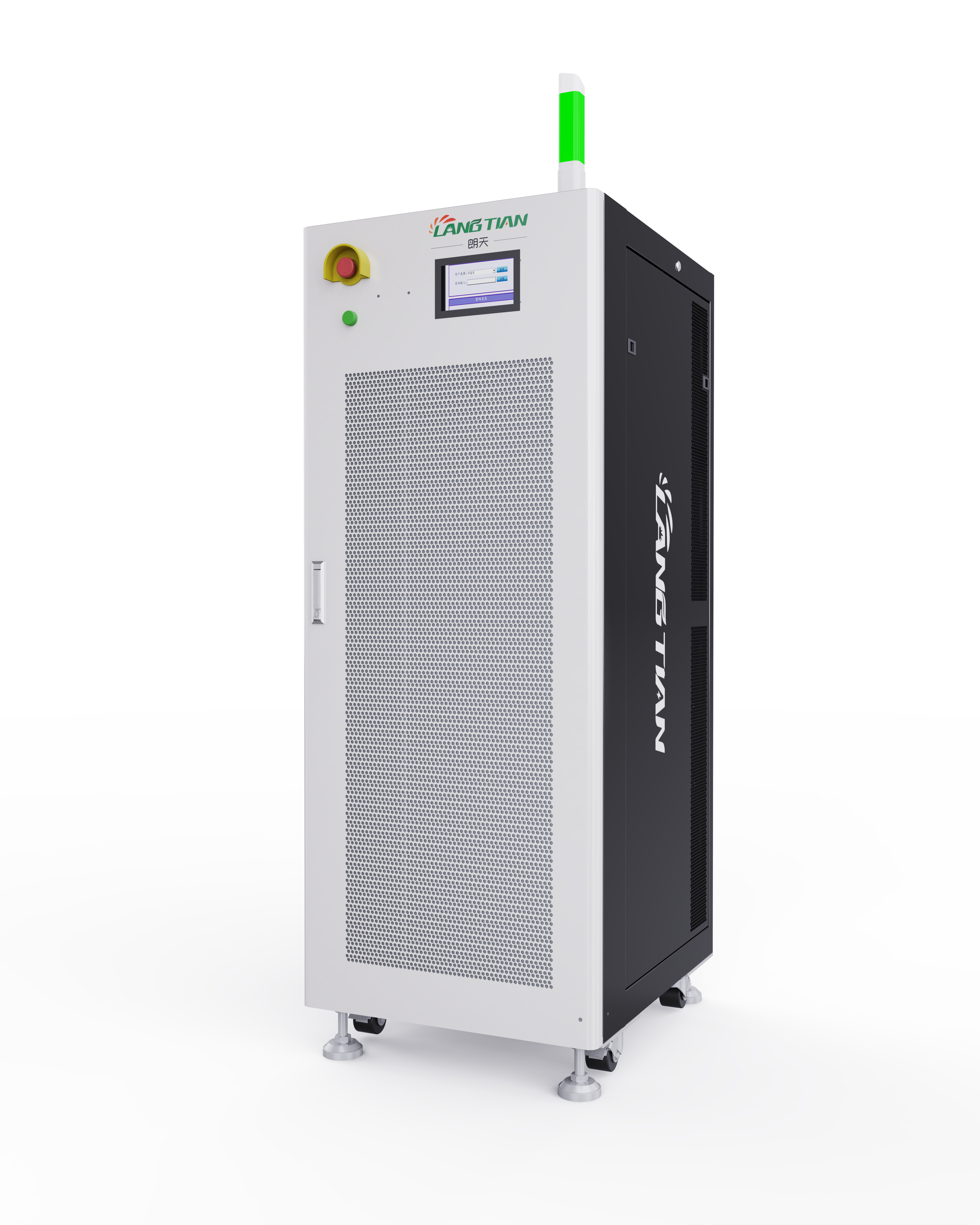

The LCT-200A-8CH battery tester is a high-performance analyzer designed for research labs and battery pack manufacturers. It supports 5V and 200A continuous high-current testing, ideal for 21700 and 4680 cylindrical cells as well as soft pack batteries. This heavy-duty system enables precise 10C discharge testing, making it well-suited for battery modular OEM factories seeking reliable and accurate performance evaluation under demanding conditions.

Product Features
  • Voltage accuracy: ±0.05% FS
  • Current accuracy: ±0.05% FS
  • Recording frequency: 10 Hz
  • Current response time (10% FS to 90% FS): < 30 ms
  • Current switching time: ≤ 50 ms
  • Resolution: 24-bit
  • Energy recovery efficiency (max): 75% (when output power > 80%)
  • Test safety
  • Data security
Product Specification
Model LCT-5V200A-8CH
Current Range 1A – 200A
Current Accuracy ±0.05% of FS
Voltage Range Charge: 0V – 5V; Discharge: 1.7V~5V
Voltage Accuracy ±0.05%FS
Response Time < 30ms
Sampling Rate 10Hz
Max Power/Channel 1000W
Stability ±0.2% of FS
Energy Efficiency Charging ≥ 85%; Discharging ≥ 80%
Charge Modes CC, CV, CC-CV, CP, CR, Pulse
Discharge Modes CC, CV, CC-CV, CP, CR, Pulse, DC
Cut-off Conditions Voltage, Current, Time, Capacity, Energy, -△V
System Details
  • Designed for power and energy storage cells, this system meets the testing needs of battery manufacturers, EV and energy storage companies, universities, and research institutes.
  • It supports cycle life, capacity, efficiency, working condition, float charge performance, SOC/DOD analysis, rate charge/discharge, and DCIR tests.
  • Charge/discharge modes include constant current, constant voltage, constant current-constant voltage, constant power, and constant resistance.
  • Equipped with power-off protection, offline testing, and overheat protection for safety.
  • Discharge energy can be recycled for use by other channels or fed back to the grid.
  • Features modular AC/DC and DC/DC dual-stage high-frequency isolation design, with low temperature drift and high-performance 24-bit ADCs for superior steady-state accuracy.
  • Test system and environmental chambers can be centrally controlled via PC.
Main Function
The LCT-200A-8CH battery tester is a high-performance analyzer designed for research labs and battery pack manufacturers. It supports 5V and 200A continuous high-current testing, ideal for 21700 and 4680 cylindrical cells as well as soft pack batteries. This heavy-duty system enables precise 10C discharge testing, making it well-suited for battery modular OEM factories seeking reliable and accurate performance evaluation under demanding conditions.
