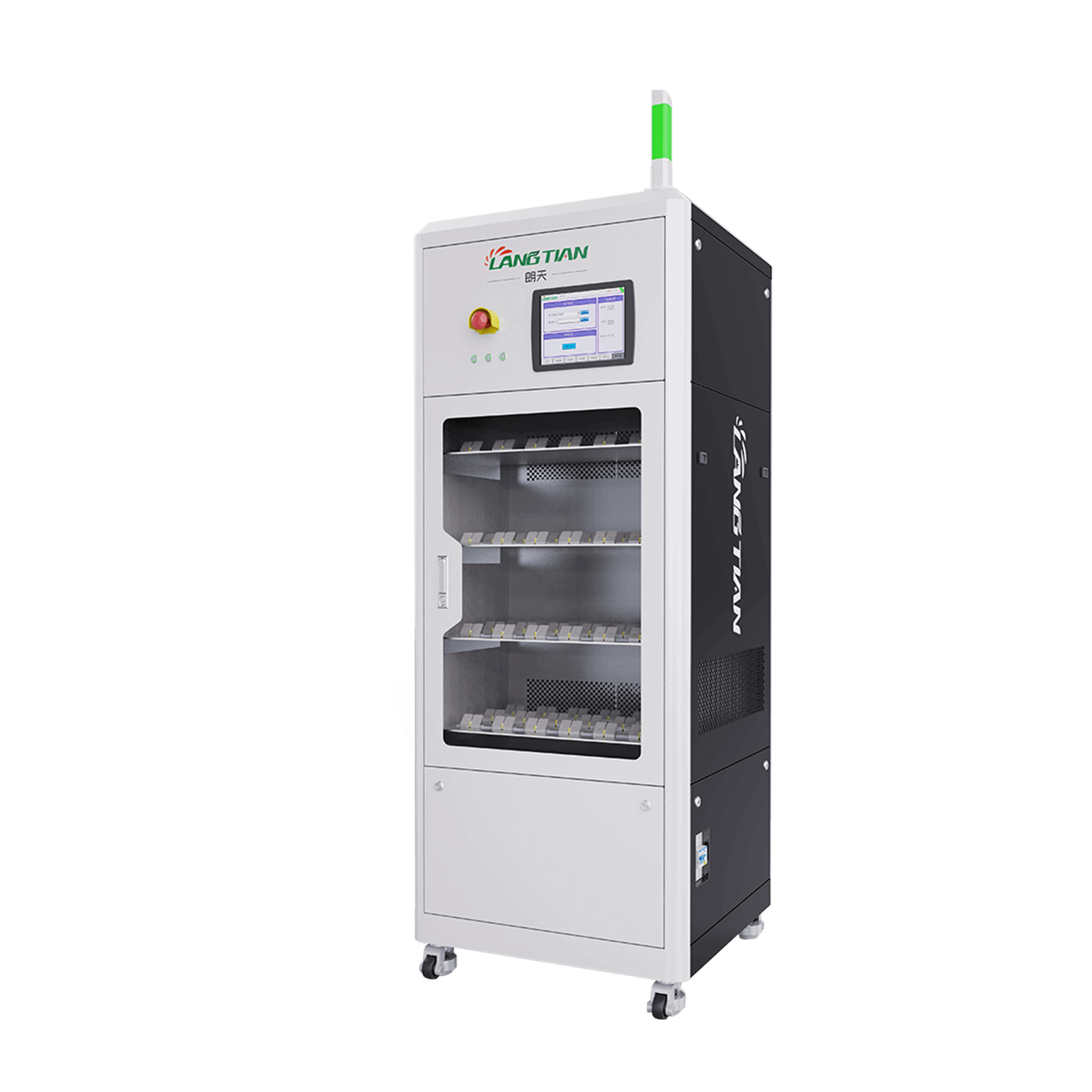

200mA 200CH Environmental Test Chamber Button Bluetooth Cell

200mA 200CH Environmental Test Chamber Button Bluetooth Cell

$1,000.00
$1,000.00

Min. Order: 1 piece

The MCT-200mA-200CH-T integrates high-precision charge/discharge testing with constant temperature control, supporting 200 independent channels for button cell battery evaluation. It enables cycle life, rate performance, internal resistance, and temperature condition testing. Equipped with comprehensive safety features and BTS protocol compatibility, it meets the demanding R&D and quality control needs of material manufacturers, universities, and research institutes for efficient and accurate battery performance analysis.

10 customers are viewing this product
Ask an expert
Product Features
  • Three current ranges
  • Current & Voltage Accuracy: ±0.025% FS ±0.025% RD
  • Data Logging Frequency: 10 Hz
  • Number of Channels (Coin Cells): 200 CH
  • Ambient Temperature Range: +10°C to 120°C
  • Temperature Accuracy: ±2°C (when stabilized)
  • Temperature Fluctuation: ≤ 1°C
  • Heating Time (from 25°C to 60°C): ≤ 15 minutes
Read more
Product Specification
Model MCT-200mA-200CH-T
Number of Channels 200 CH (Customizable)
Channel Current Range 0.02~20mA; 0.05~50mA; 0.2~200mA
Current Accuracy ±0.05% of FS
Voltage Range per Channel Charge:0~4500mV; Discharge: 2000~4500mV
Voltage Accuracy ±0.05% of FS
Current Response Time < 1 ms
Data Logging Frequency 10 Hz
Max Output Power per Channel 1 W
Power Stability ±0.1% of FS
Charging Modes CC, CV, CC-CV, CP
Charging Cut-off Conditions Voltage, Current, Time, Capacity, Energy, -△V
Discharging Modes CC, CV, CC-CV, CP, CR
Discharging Cut-off Conditions Voltage, Current, Time, Capacity, Energy
Ambient Temperature Range +10°C ~ 120°C
Temperature Control Accuracy ±2°C (when stabilized)
Temperature Fluctuation ≤ 1°C
Heating Time (from 25°C to 60°C) ≤ 15 min
Read more
System Details
  • Integrating charge-discharge testing and constant temperature chamber functionality, this system enables efficient and precise testing and research of battery thermal performance. It meets the diverse testing needs of material manufacturers, universities, and research institutions.

  • Supports cycle life testing, constant temperature testing, thermal condition performance testing, and reliability testing

  • Equipped with a modular air regulation channel design

  • Compatible with BTS communication protocol, allowing temperature parameters and step control conditions to be set

  • Comprehensive protection features, including leakage, short circuit, high-temperature fuse, independent redundancy, and over-temperature protection

  • Includes power-off protection, offline testing, and overheating protection

  • The charge-discharge testing system and environmental chamber can be centrally controlled via PC

Read more
