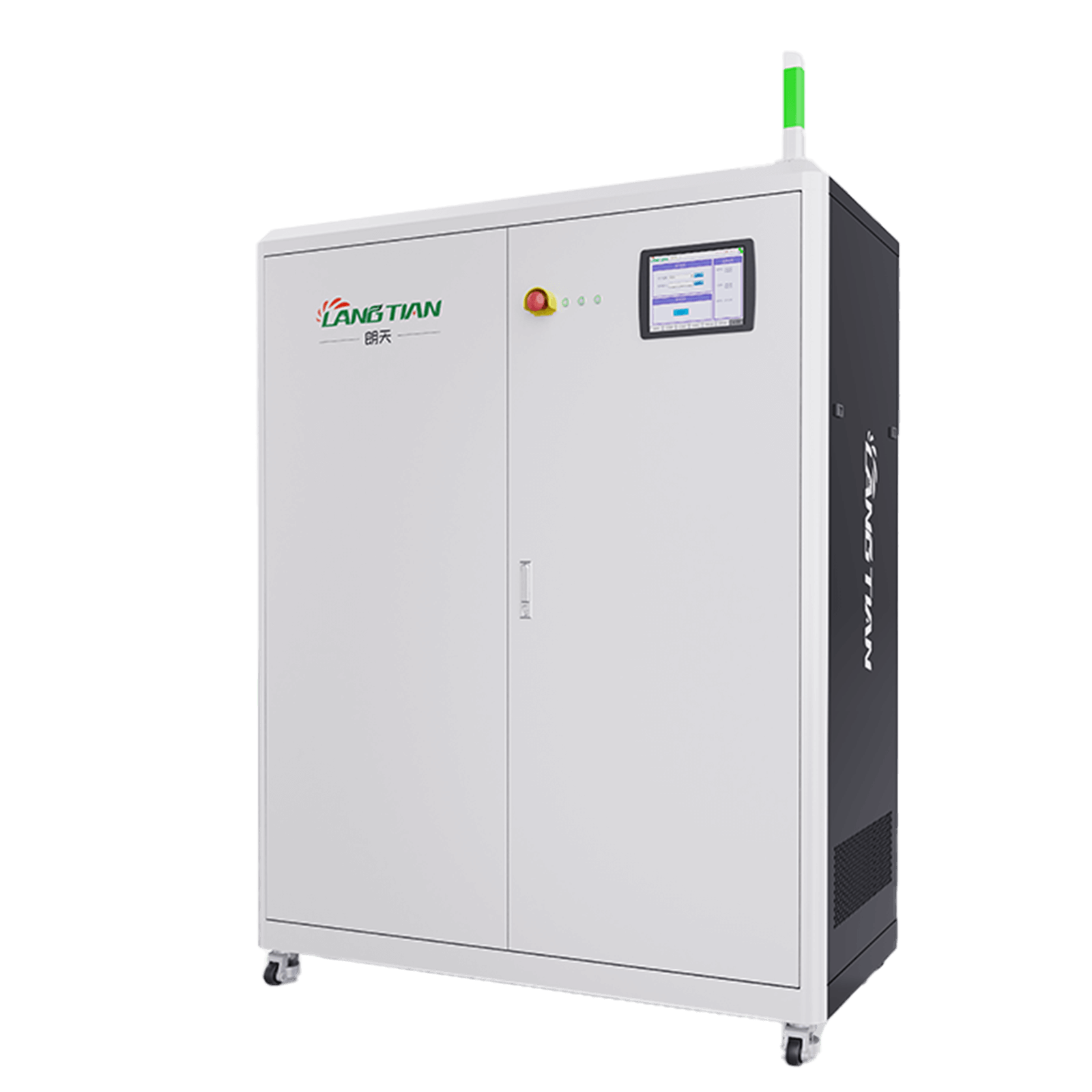

Langtian battery tester module and pack for battery capacity test
Langtian battery tester module and pack for battery capacity test

Battery Testing System for PACK

Min. Order: 1 piece

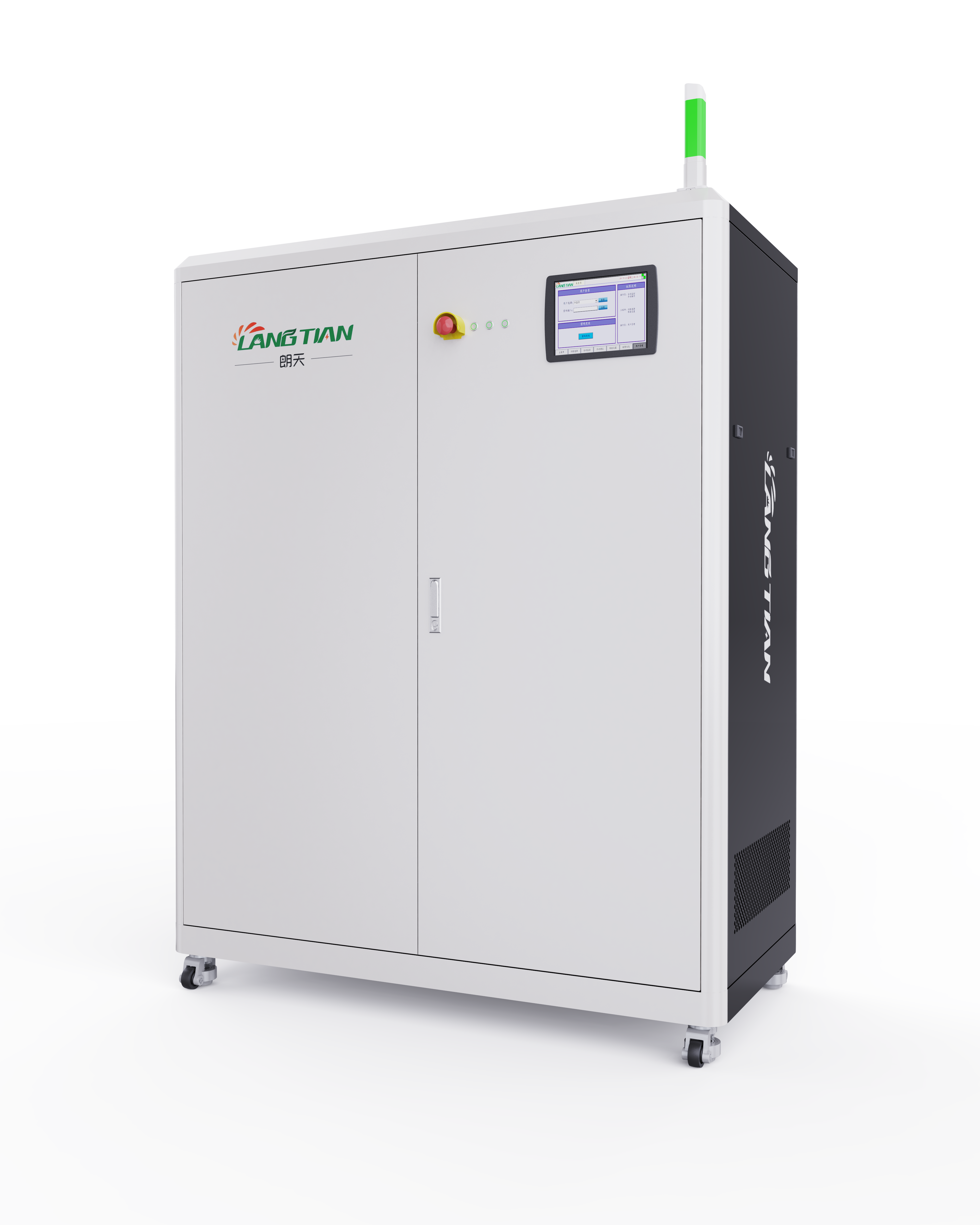

The PKT-kW PACK is a high-precision battery testing system designed for modular battery packs. It features a wide voltage range up to 5V per cell, supports high-voltage output up to 1000V, and offers accurate voltage and current measurements. Modular design allows easy expansion, making it ideal for battery manufacturers, EV developers, and energy storage applications.

Product Features
  • Voltage accuracy: ±0.05% FS
  • Recording frequency: 100 Hz
  • Current response time (10% FS to 90% FS): < 5 ms
  • Current switching time: ≤ 10 ms
  • Resolution: 24-bit
  • Offline Testing: 1GB
  • Energy recovery efficiency (max): 94%
  • Test safety
  • Data security
Product Specification
Model PKT-kW PACK
Single Cell Voltage Output Range 100 mV ~ 5000 mV
Voltage Output / Measurement Accuracy (per cell) ±0.5 mV
Max Load Current per Simulated Cell 3 A
Current Measurement Accuracy (per cell) ±0.5 mA
Temperature Simulation Voltage Output Range -3.0 V ~ +4.5 V
Temperature Simulation Voltage Accuracy ±0.5 mV
High-Voltage Constant Voltage Output Range 10 V ~ 1000 V
High-Voltage Output Accuracy ±(0.1%RD + 100 mV)
High-Voltage Measurement Accuracy ±(0.1%RD)
Max Permissible Current (High-Voltage Source) 0 ~ 100 mA
High-Voltage Current Measurement Accuracy 0.05%RD + 50 μA
Number of High-Voltage Channels 1 channel (modular expansion supported)
Adjustable Resistance Range 2 Ω ~ 1 MΩ
Adjustable Resistance Accuracy 0.2%RD + 1.0 Ω
PWM Frequency Range 1 Hz ~ 500 kHz
PWM Output Voltage Determined by pull-up voltage level
Permissible High-Level Voltage Range -12 V ~ +12 V
System Details
  • Designed for performance testing of battery packs in battery manufacturing enterprises, electric vehicle manufacturers, and energy storage companies.
  • Supports cycle life testing, capacity, efficiency, operating conditions, float charge performance, SOC, DOD, and rate charge/discharge tests.
  • Recovered energy from battery discharge can be reused by other battery channels or fed back into the internal grid.
  • Adopts a dual-stage AC/DC and DC/DC high-frequency isolation modular design, combined with low-drift, high-performance multi-channel 24-bit A/D conversion chips, offering higher steady-state accuracy than conventional equipment.
  • The charge/discharge testing system and environmental chambers can be centrally controlled via PC.
