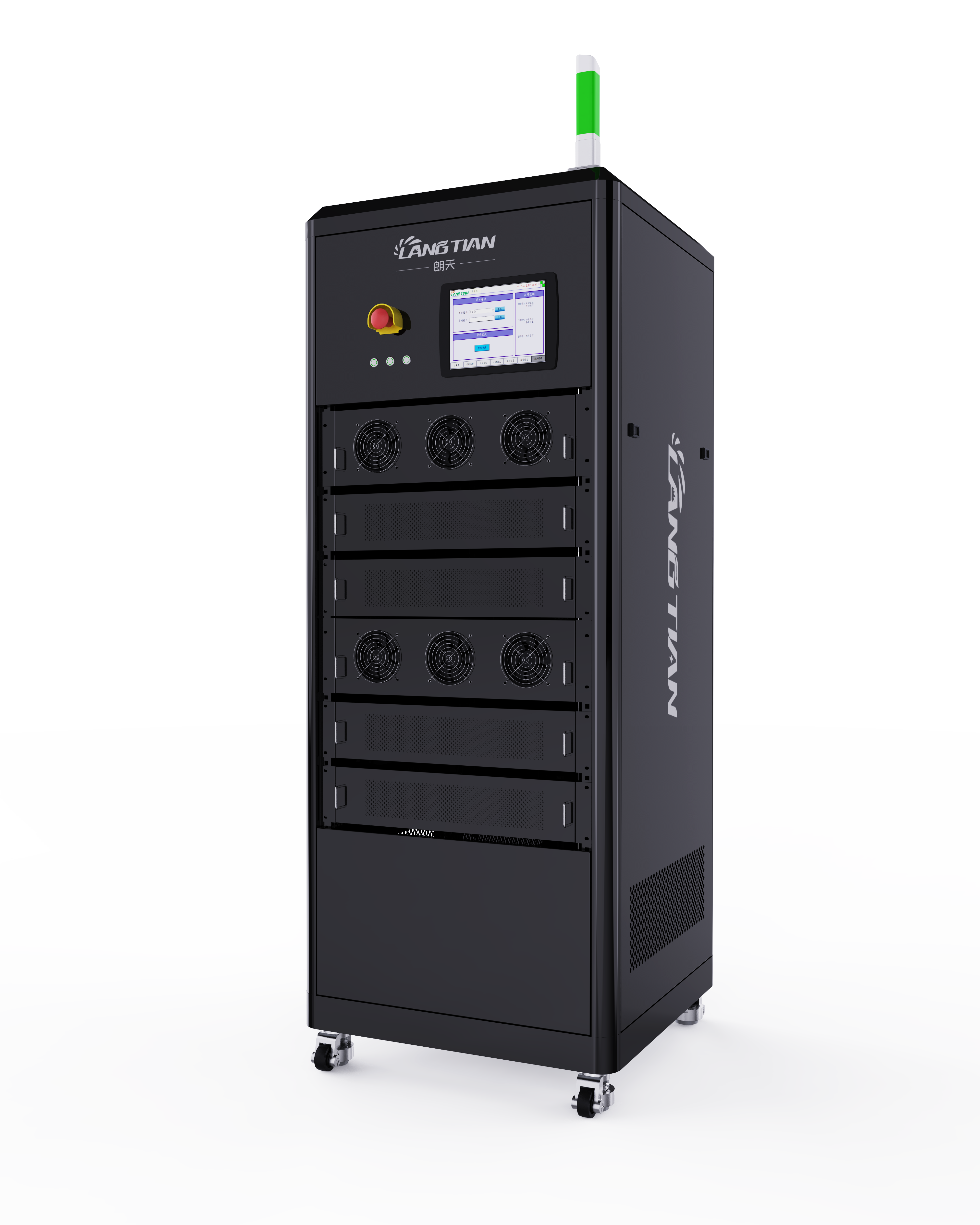

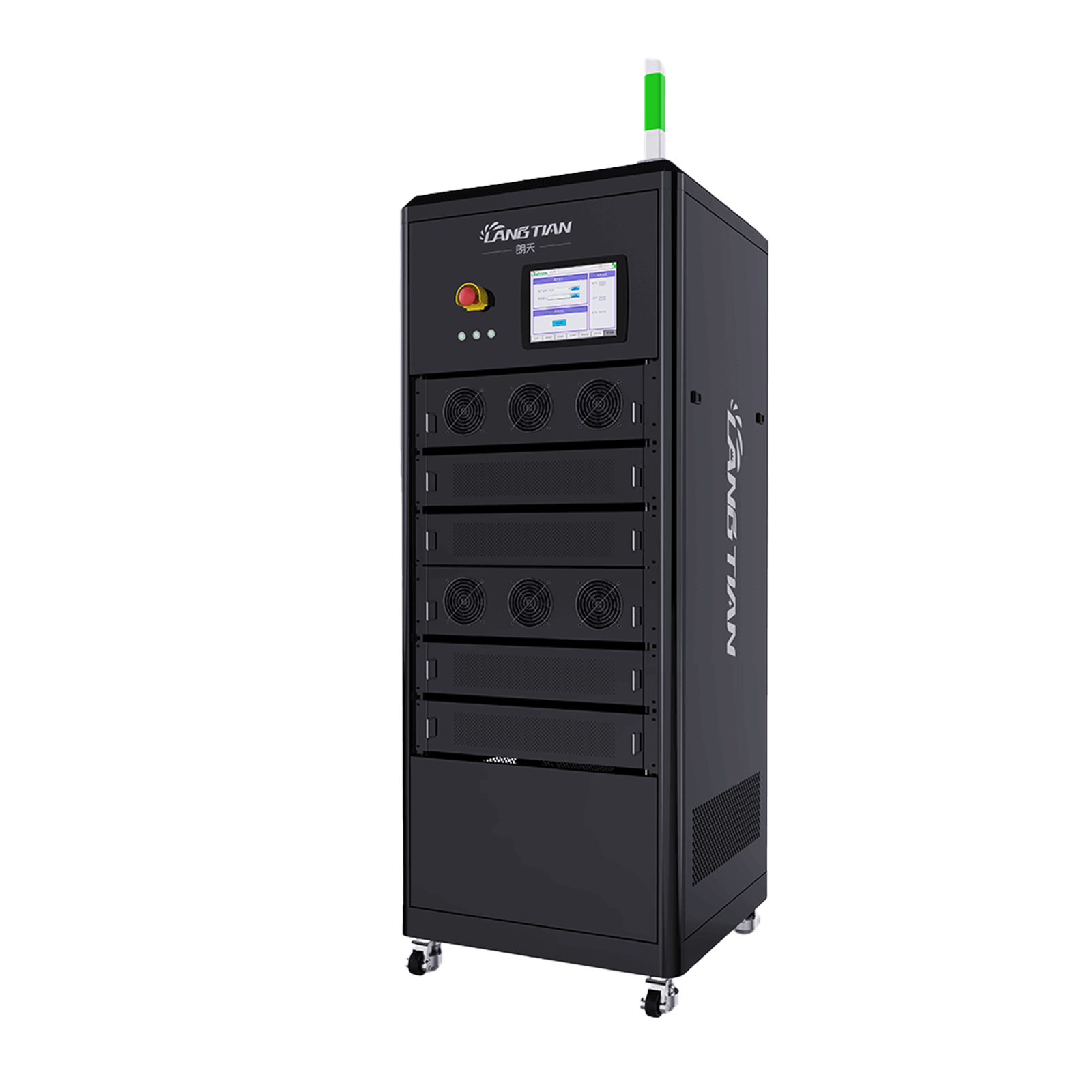

LCT-100A-16CH 5V 100A 200A high current battery tester for energy storage cells
USD $2500~$3000
Min. Order: 1 piece
The SCT-100A-16CH battery tester is designed for high-rate testing of 21700 and 26650 cells, supporting discharge rates up to 10C and currents up to 100A. Ideal for research institutions, battery manufacturers, and PACK factories, it enables precise analysis of battery performance under demanding conditions. With 16 channels, it facilitates efficient testing of multiple cells or modules simultaneously, ensuring reliable data for development and quality control.
10 customers are viewing this product
- Voltage accuracy: ±0.05% FS
- Current accuracy: ±0.05% FS
- Recording frequency: 10 Hz
- Current response time (10% FS to 90% FS): < 20 ms
- Current switching time: ≤ 50 ms
- Resolution: 24-bit
- Energy recovery efficiency (max): 75% (when output power > 80%)
- Test safety
- Data security
| Model | LCT-5V100A-16CH |
| Current Range | 0.5A – 100A |
| Current Accuracy | ±0.05% of FS |
| Voltage Range | 25mV – 5V |
| Voltage Accuracy | ±0.05%FS |
| Response Time | < 20ms |
| Sampling Rate | 10Hz |
| Max Power/Channel | 500W |
| Stability | ±0.2% of FS |
| Energy Efficiency | Charging ≥ 85%; Discharging ≥ 80% |
| Charge Modes | CC, CV, CC-CV, CP, CR, Pulse |
| Discharge Modes | CC, CV, CC-CV, CP, CR, Pulse, DC |
| Cut-off Conditions | Voltage, Current, Time, Capacity, Energy, -△V |
- Designed for power and energy storage cells, this system meets the testing needs of battery manufacturers, EV and energy storage companies, universities, and research institutes.
- It supports cycle life, capacity, efficiency, working condition, float charge performance, SOC/DOD analysis, rate charge/discharge, and DCIR tests.
- Charge/discharge modes include constant current, constant voltage, constant current-constant voltage, constant power, and constant resistance.
- Equipped with power-off protection, offline testing, and overheat protection for safety.
- Discharge energy can be recycled for use by other channels or fed back to the grid.
- Features modular AC/DC and DC/DC dual-stage high-frequency isolation design, with low temperature drift and high-performance 24-bit ADCs for superior steady-state accuracy.
- Test system and environmental chambers can be centrally controlled via PC.
