Front view of Langtian battery analyzer 200mA 16-channel for battery health test

Low-Current Cell Tester Series

Application: Research labs, material development, coin cell, small-capacity R&D.

  • Voltage: 0-5V
  • Current Range: 20mA / 50mA / 200mA
  • Channels: 8 / 16 / 32 / 64 / 128 （Customization）
  • Voltage & Current Accuracy: ±0.025% F.S.
  • Recording Frequency: 10Hz
  • Sampling Time: 100ms
  • Current Response Time: ≤1ms
  • Off-Line Test: 1GB
Get A Quote
Front view of module for Langtian battery analyzer 6A 16-channel

Standard Current Cell Tester Series

Application: 18650, 21700, Consumer electronics, small pouch cells, EV cell R&D.

  • Voltage: 0-5V
  • Current Range: 1A / 3A / 6A
  • Channels: 8 / 16 / 32 / 64 / 128 （Customization）
  • Voltage & Current Accuracy: ±0.025% F.S.
  • Recording Frequency: 100Hz
  • Sampling Time: 100ms
  • Current Response Time: ≤1ms
  • Off-Line Test: 1GB
Get A Quote
Front view of Langtian battery analyzer 30A for battery health test

High-Current Cell Tester Series

Application: High-power cells, e-mobility research, power tool cells.

  • Voltage: 0-5V
  • Current Range: 30A /60A / 100A / 500A / 1000A
  • Channels: 4 / 8 / 16 / 32 / 64（Customization）
  • Voltage & Current Accuracy: ±0.05% F.S.
  • Recording Frequency: 10Hz
  • Sampling Time: 100ms
  • Current Response Time: ≤50ms
  • Energy Regeneration(Max): 75%
Get A Quote

What You Can Test?

Our equipment supports full battery cell testing workflows
Cycle Life Testing

Repeatedly charges and discharges the battery to evaluate durability and predict lifespan, helping you choose long-lasting battery products.
Rate Charging/Discharging Test

Tests battery performance under fast charging and high-power conditions, confirming suitability for rapid charging and high-power applications.
Pulse Simulation Test

Simulates sudden high-power usage to check if the battery can handle peak loads, ensuring reliability under extreme conditions.
GITT

Tests the battery’s reaction speed and stability, helping you understand if it operates reliably and select more consistent cells.
DCIR

Measures the battery’s internal resistance to assess output power and heat generation, ensuring safe and efficient performance.
dQ/dV Curve Analysis

Analyzes charge and discharge data to detect early signs of aging or abnormal behavior, helping prevent performance decline and potential failures.

Ideal Users & Applications

Battery R&D Laboratories

Perform professional cell performance analysis, safety testing, and lifespan evaluation to support product development.
Battery Manufacturers

Inspect individual cell quality and consistency, optimize production processes, and ensure reliable battery performance.
Universities & Research Institutes

Conduct teaching experiments and basic research, testing cell performance, capacity, and cycle life.

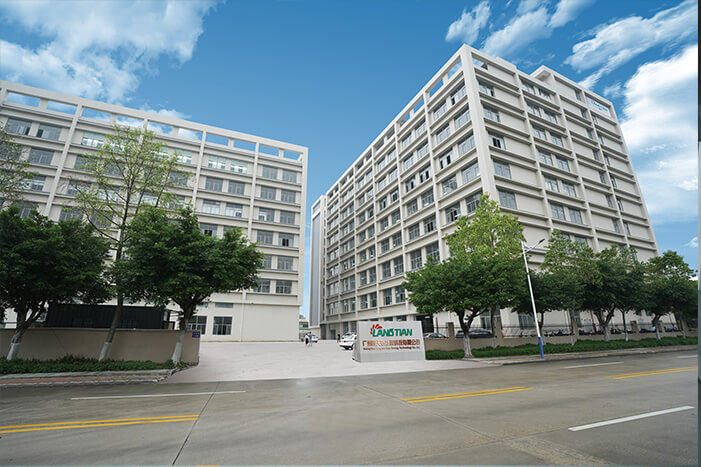

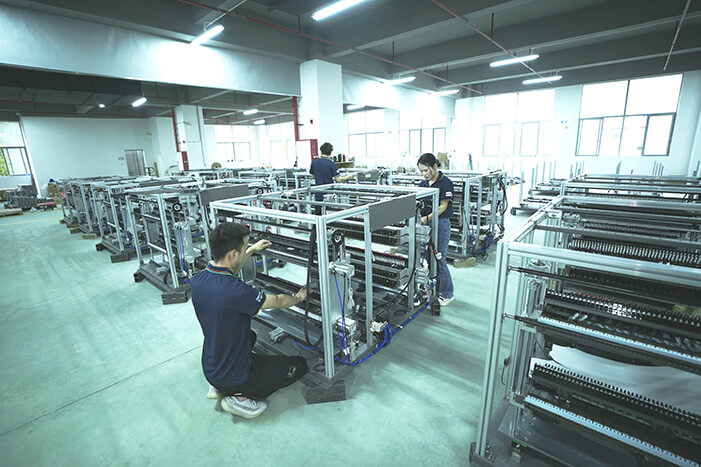

LangTian Factory 3D Show

5V Battery Analyzer 200mA 16CH
$483.33
$520.00
$483.33
5V Battery Analyzer 6A 16CH
$508.33
$800.00
$508.33
5V Battery Analyzer 100A 8CH
$1,801.39
$1,801.39
5V Battery Analyzer 12A 16CH
$586.11
$850.00
$586.11
5V Battery Analyzer 200A 8CH
from $3,013.89
$3,200.00
from $3,013.89
5V Battery Analyzer 30A 16CH
$773.61
$900.00
$773.61
5V Battery Analyzer 500A 4CH
$3,256.94
$3,256.94
5V Battery Analyzer 60A 16CH
$1,152.78
$1,300.00
$1,152.78
