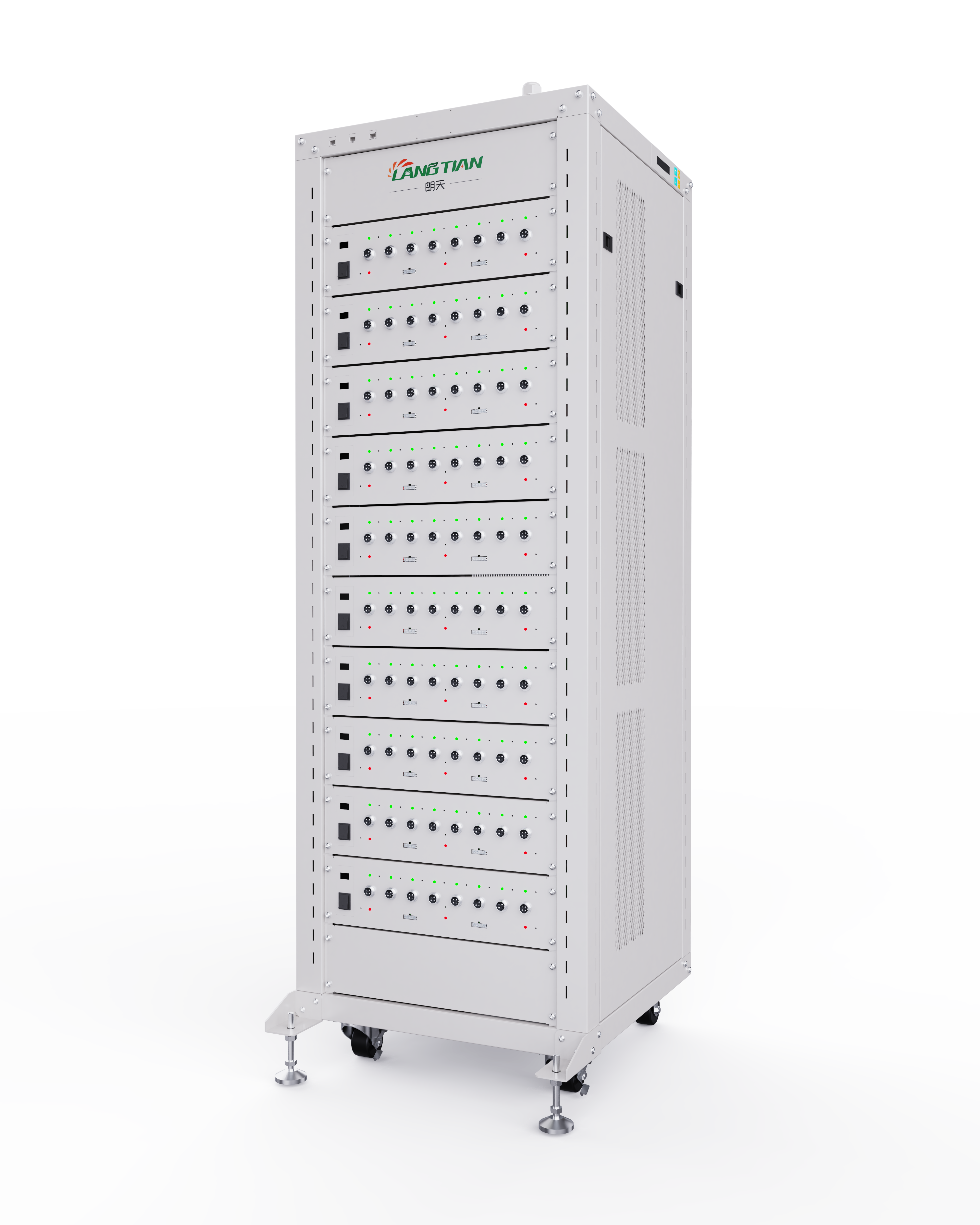

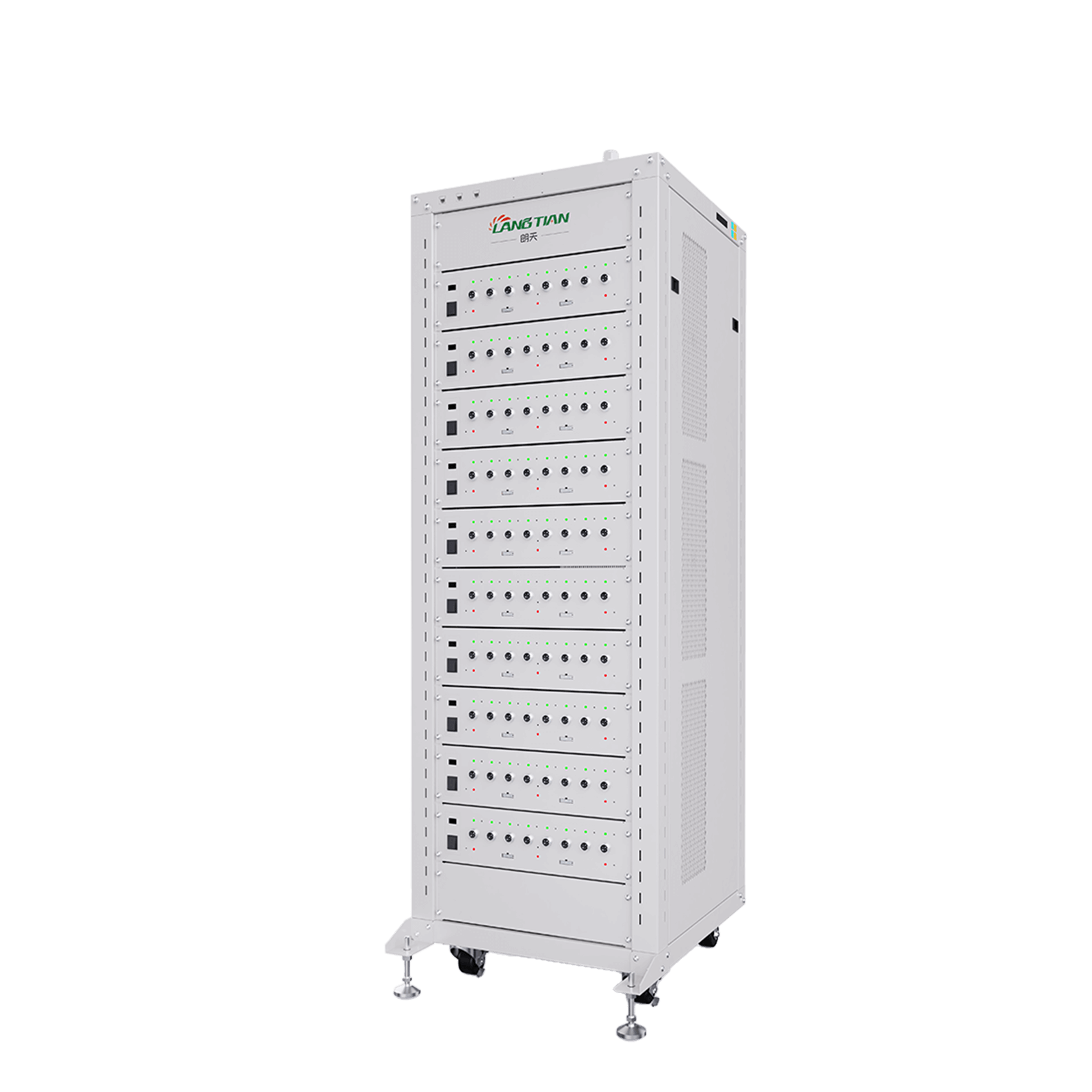

LCT-5V12A-16CH cell battery analyzer
USD $1080~$2000
Min. Order: 1 piece
Designed for 5V batteries up to 12A, LCT-5V12A-16CH tester supports three current ranges and 16 channels for parallel testing. Ideal for R&D labs, quality control, and 3C electronics, it enables precise evaluation across multiple battery types.
10 customers are viewing this product
- Current accuracy: ±0.03%FS ±0.03%RD
- Voltage accuracy: ±0.025%FS ±0.025%RD
- Recording frequency: 100 Hz
- Resolution: 16-bit AD
- Offline mode storage: 1 GB
- Test safety protection
- Data security assurance
- Supports SMBus communication
| Model | LCT-5V12A-16CH |
| Current Range | 1mA~1A; 0.6A~6A; 6A~12A |
| Current Accuracy | ±0.03%FS±0.03%RD |
| Voltage Range | 25mV~5V |
| Voltage Accuracy | ±0.025%FS±0.025%RD |
| Response Time | < 5ms |
| Sampling Rate | 10Hz |
| Max Power/CH | 60W |
| Stability | ±0.1% of FS |
| Charge Modes | CC, CV, CC-CV, CP, CR, Pulse |
| Discharge Modes | CC, CV, CC-CV, CP, CR, Pulse |
| Cut-off Conditions | Voltage, Current, Time, Capacity, Energy, -△V |
- Suitable for performance testing of coin, cylindrical, pouch, and other types of batteries.
- It meets a wide range of testing needs for battery manufacturers, material suppliers, universities, and research institutes.
- Equipped with SMBus/12C communication functionality.
-

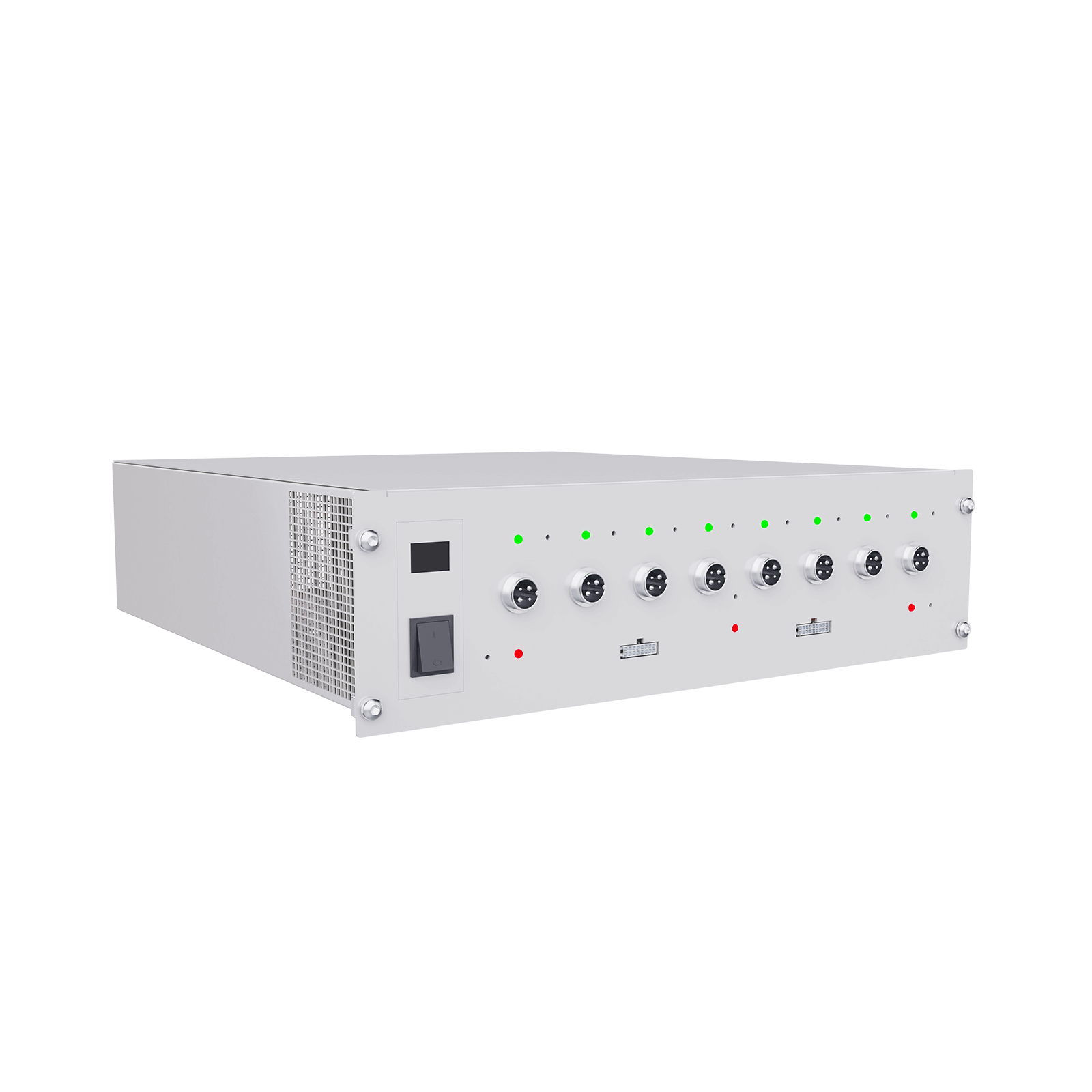

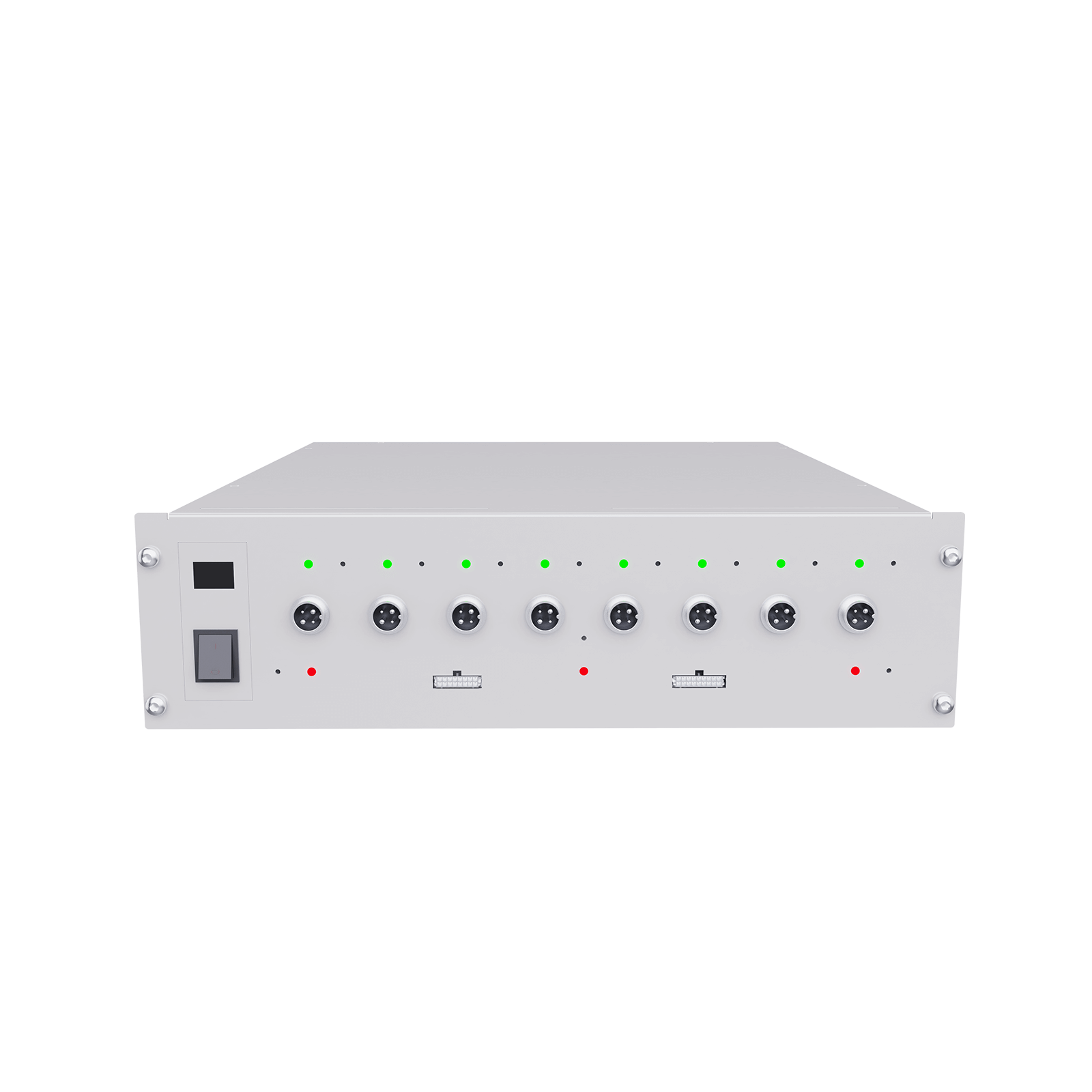

Modular design, with each unit consisting of 16 independent channels.
-
Supports various test types including cycle life testing, rate charge/discharge testing, pulse simulation testing, GITT, DCIR, and dQ/dV differential capacity curve analysis.
-
Charge/discharge modes include constant current (CC), constant voltage (CV), constant current–constant voltage (CC–CV), constant power, and constant resistance.
-
Built-in safety protections such as power failure protection, offline testing, and overheat protection.
The charge/discharge testing system and environmental chamber can be centrally controlled via a PC.
