Voltage Auxiliary Channel

Voltage Auxiliary Channel

$0.00
$0.00

Min. Order: 1 piece

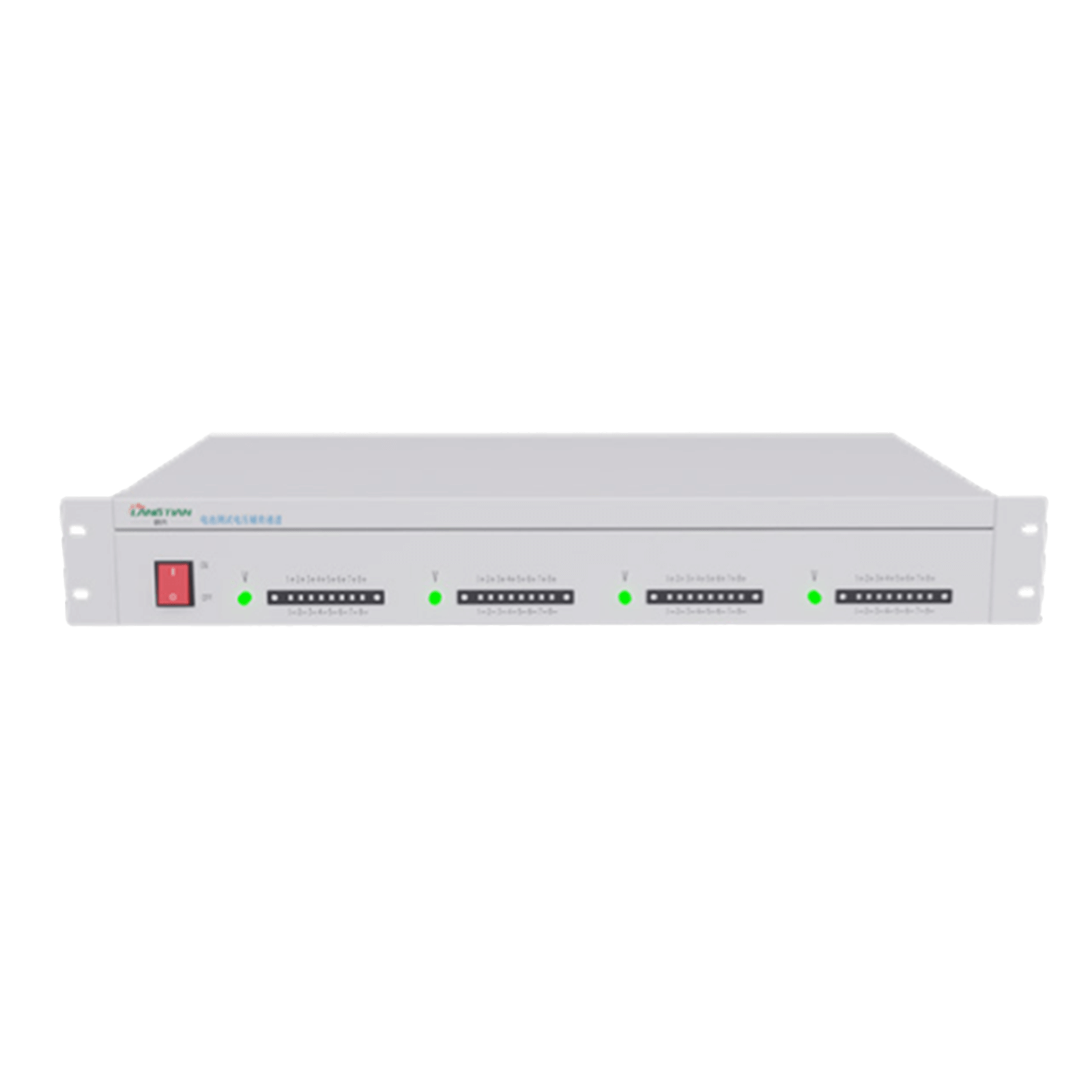

Boost your battery testing accuracy with the Langtian 32-Channel Voltage Auxiliary Module. Designed for reliability, each channel is fully isolated and equipped with a 16-to-1 analog switch to prevent interference.

Monitor 32 voltage channels simultaneously with high-precision 24-bit ADCs and enjoy built-in overvoltage protection up to 1000V. Compact, efficient, and easy to integrate, it’s the perfect addition to battery testing systems and analyzers.

10 customers are viewing this product
Ask an expert
Product Features
  • Each channel voltage acquisition is fully isolated using opto-isolated switches.
  • A 16-to-1 analog switch ensures that only one channel is selected at a time, avoiding ground potential differences.
  • Overvoltage protection, with a maximum withstand voltage of 1000V.
  • A single unit supports simultaneous detection of 32 voltage channels.
  • Uses a 24-bit high-precision ADC imported acquisition chip.
Read more
Product Specification
Model Voltage Auxiliary Channel
Input Voltage AC220V ±10% 50Hz
Number of Channels 32
Input Impedance 100MΩ
Voltage Accuracy ±(0.3%RD+0.3%FS)
Voltage Resolution 0.0001V
System Time Resolution ±1s (no cumulative error)
Voltage Measurement Range -5V~+5V
Noise Level < 50dB
Channel Control Mode Independent control
Power Consumption 10W
Dimensions (W × D × H) 440mm × 211mm × 44.5mm
