Temperature Auxiliary Channel

Temperature Auxiliary Channel

Min. Order: 1 piece

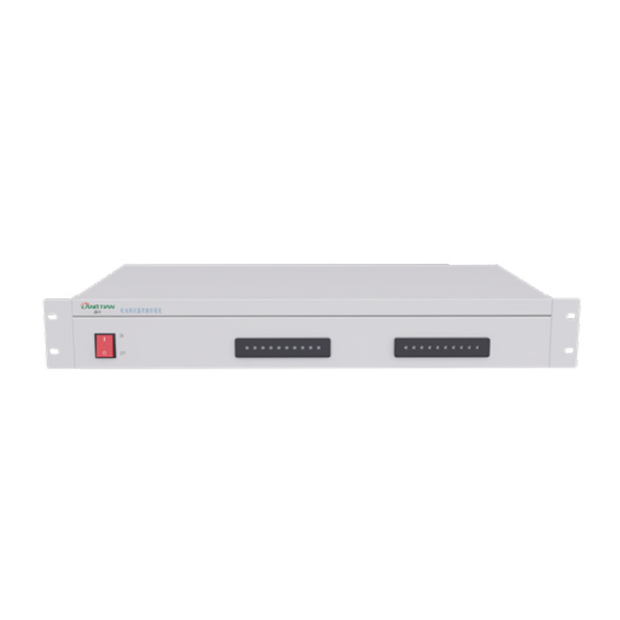

This system adopts T-type thermocouple sensors with fast temperature response and a patented cold junction compensation box to ensure high measurement accuracy. It supports a wide temperature range from -50°C to 200°C and allows real-time monitoring of up to 32 temperature channels per unit. The device is built with a 24-bit high-precision imported ADC acquisition chip for reliable and accurate data capture.

Product Features
  • Uses T-type thermocouple temperature sensors
  • Fast temperature response speed
  • Patented cold junction compensation box for higher measurement accuracy
  • Wide temperature measurement range (-50°C to 200°C)
  • Supports simultaneous detection of 32 temperature channels per unit
  • Equipped with 24-bit high-precision imported ADC acquisition chip
Product Specification
Model Temperature Auxiliary Channel
Input Voltage AC220V ±10% 50Hz / AC220V ±10% 50Hz
Number of Channels 32
Input Impedance 1MΩ
Temperature Accuracy ±1°C
Temperature Resolution 0.01°C
System Time Resolution ±1s (no cumulative error)
Temperature Measurement Range -50°C ~ 200°C
Noise Level < 50dB
Channel Control Mode Independent control
Power Consumption 10W
Dimensions (W × D × H) 440mm × 211mm × 44.5mm
System Details
Main Function
