LCT-5V30A-16CH battery testing equipment for 30A current battery
LCT-5V30A-16CH battery testing equipment for 30A current battery
LCT-5V30A-16CH battery testing equipment for 30A current battery

LCT-5V30A-16CH battery testing equipment for 30A current battery

USD $2070~$3000

Min. Order: 1 piece

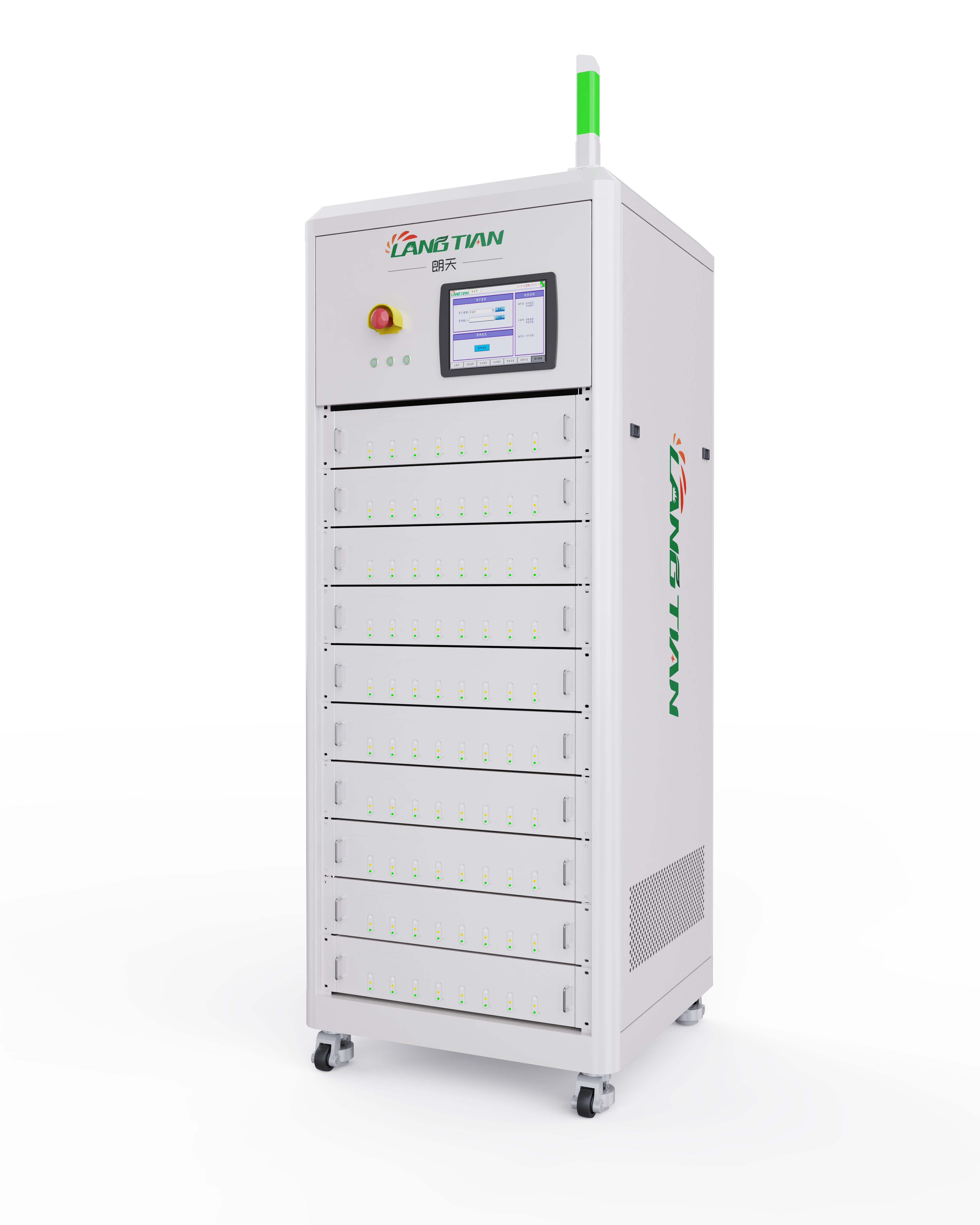

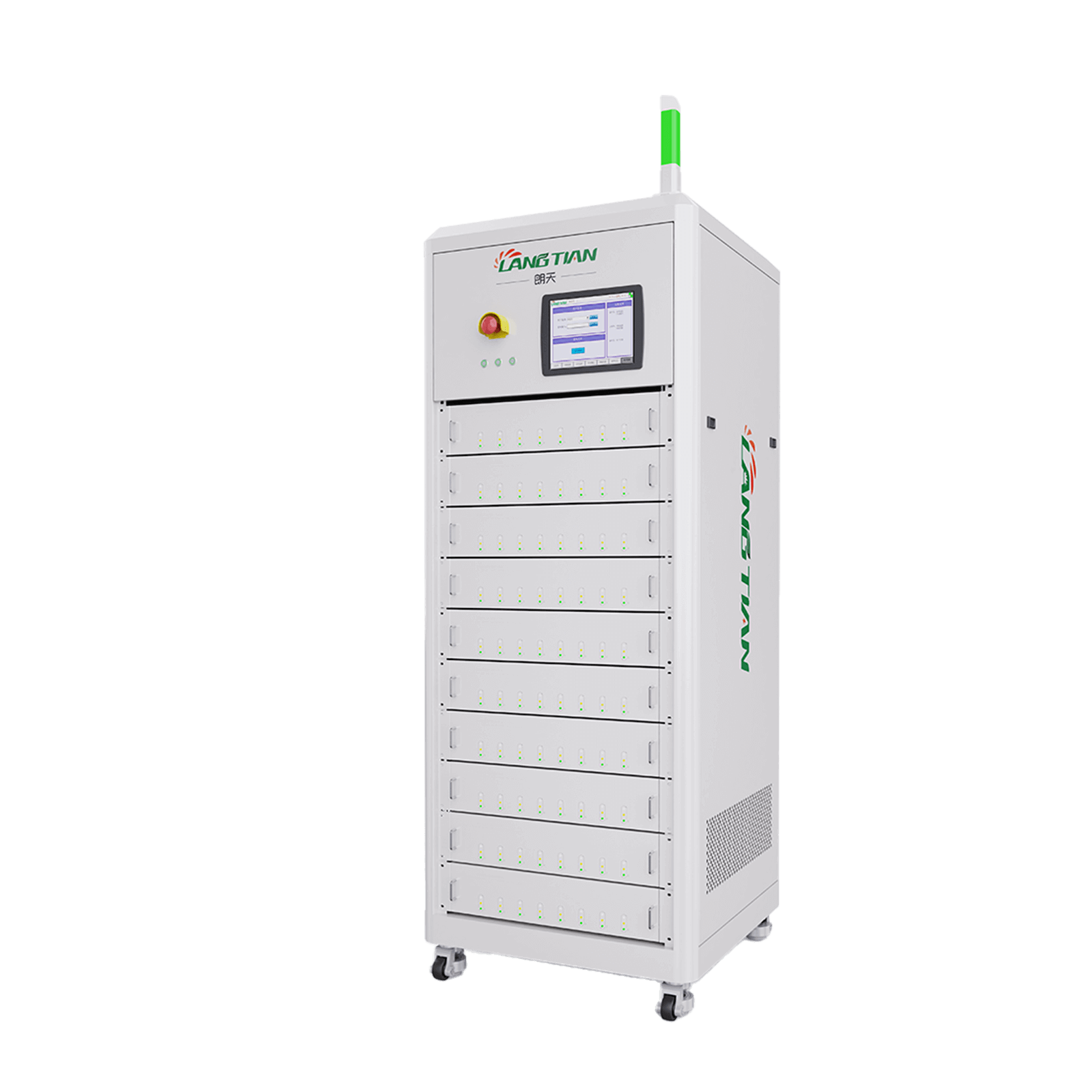

The SCT-30A-16CH Battery Tester is a high-precision analyzer for lithium-ion and other rechargeable batteries. With 16 independent 5V 30A channels, it supports various types like 18650, 26650, LiFePO4, NCM, and NiMH. It enables accurate charge, discharge, and cycle tests, ideal for labs and battery pack analysis. Perfect for R&D and quality control.

10 customers are viewing this product
Ask an expert
Product Features
  • Current accuracy: ±0.03% FS ±0.03% RD
  • Voltage accuracy: ±0.025% FS ±0.025% RD
  • Data recording frequency: 100 Hz
  • Current response time (10% FS to 90% FS): < 10 ms
  • Resolution: 16-bit ADC
  • Offline storage: 1 GB
  • Test safety protection
  • Data security
  • Supports SMBus communication
  • Energy-saving inverter
Read more
Product Specification
Model LCT-5V30A-16CH
Current Range 0.5A~30A
Current Accuracy ±0.03%FS±0.03%RD
Voltage Range 25mV~5V
Voltage Accuracy ±0.025%FS±0.025%RD
Response Time <10ms
Sampling Rate 10Hz
Max Power/CH 150W
Stability ±0.2% of FS
Charge Modes CC, CV, CC-CV, CP, CR, Pulse
Discharge Modes CC, CV, CC-CV, CP, CR, Pulse
Cut-off Conditions Voltage, Current, Time, Capacity, Energy, -△V
Read more
System Details
  • Suitable for performance testing of large cylindrical and pouch cells, meeting the diverse testing needs of battery manufacturers, material suppliers, universities, and research institutes.
  • Supports SMBus/12C communication.

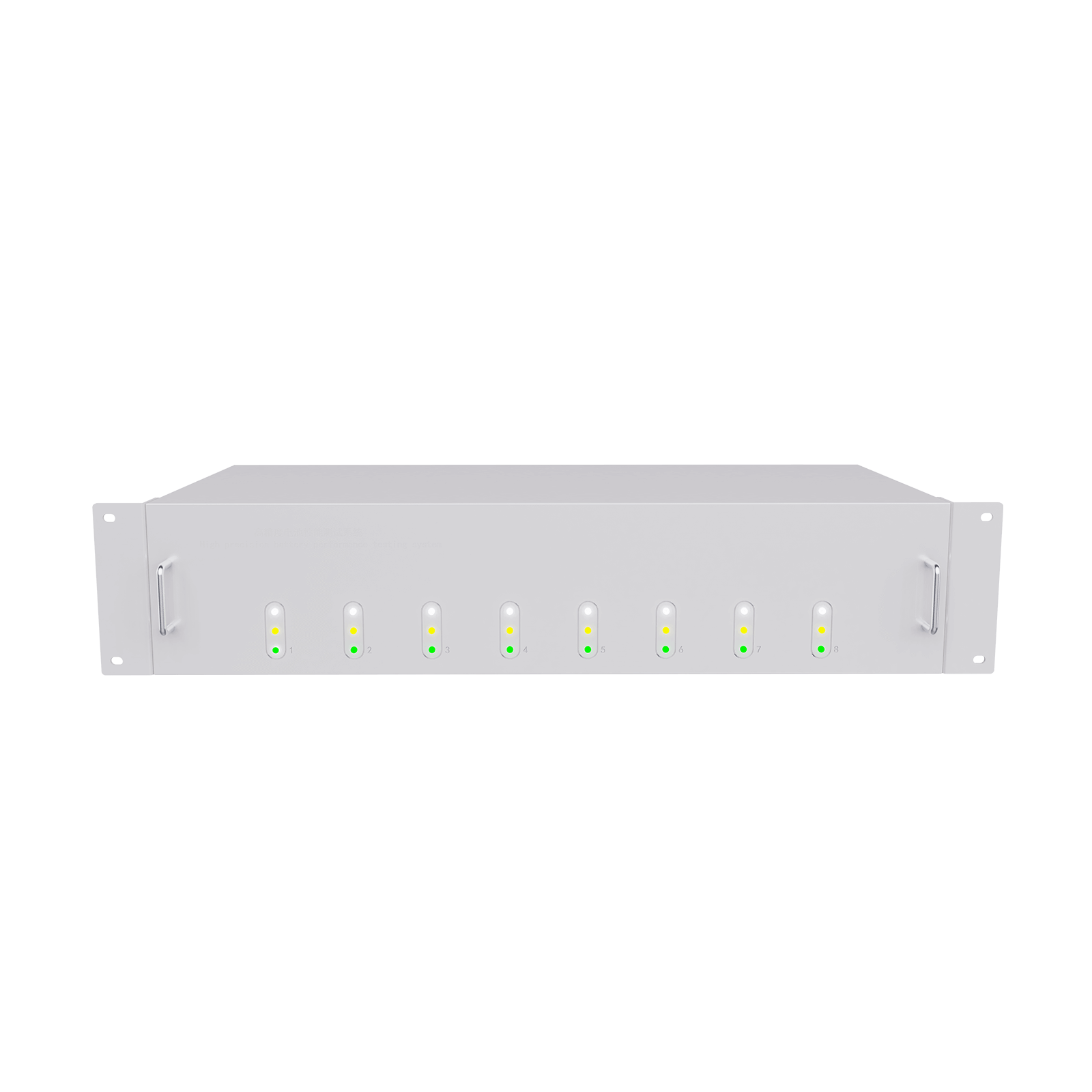

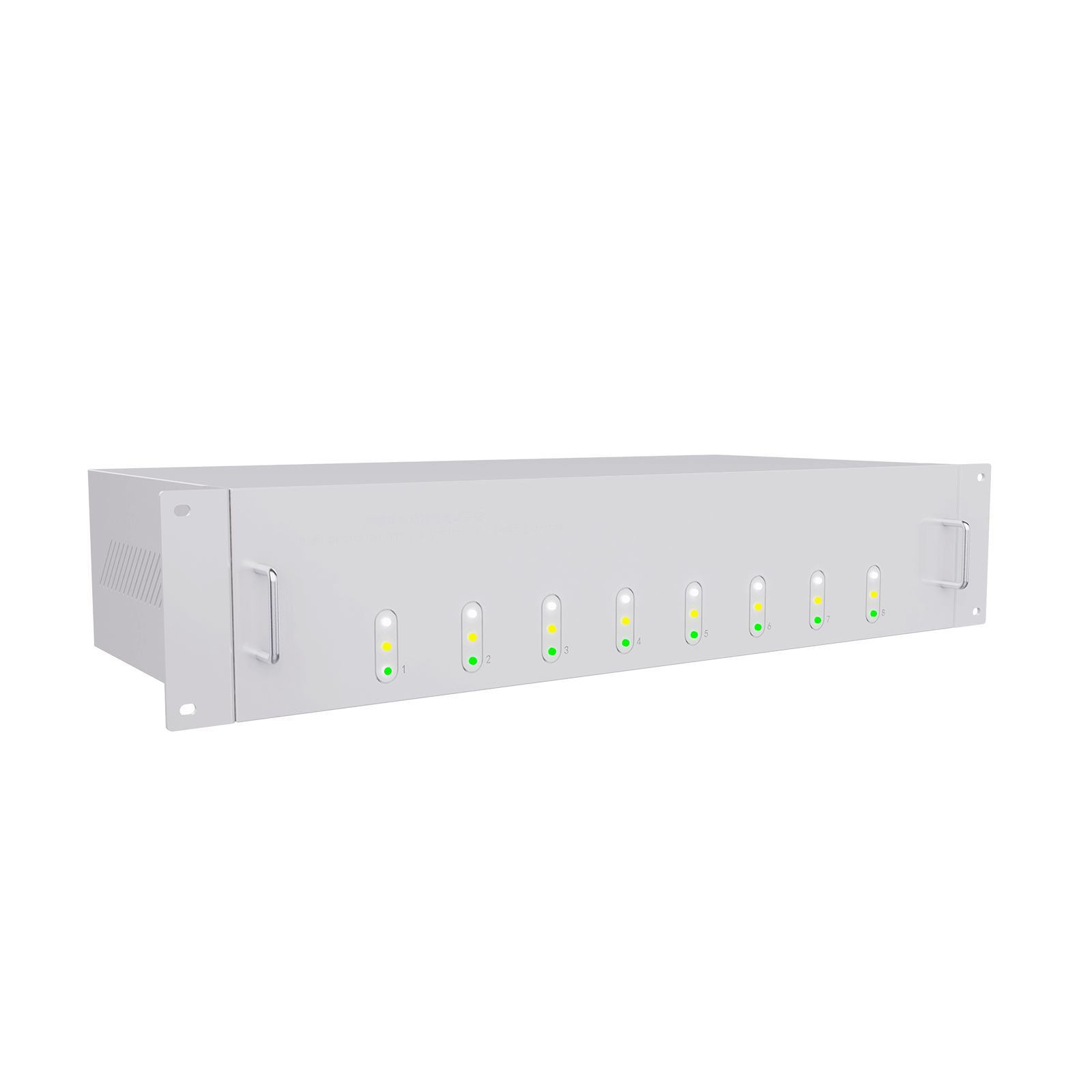

  • Modular design: each unit includes 16 independent channels.
  • Supports channel parallel connection and DBC file import, editing, and export.
  • Supports various testing modes, including cycle life testing, rate charge/discharge testing, pulse simulation, DCIR testing, and dQ/dV differential capacity analysis.
  • Charge/discharge modes include constant current (CC), constant voltage (CV), constant current-constant voltage (CC-CV), constant power, and constant resistance.
  • Equipped with safety features such as power-off protection, offline testing, and overheat protection.
  • Supports energy recovery from battery discharge, which can be reused by other channels or fed back to the internal grid.
  • Charge/discharge testing systems and environmental chambers can be centrally controlled via PC.
Read more
