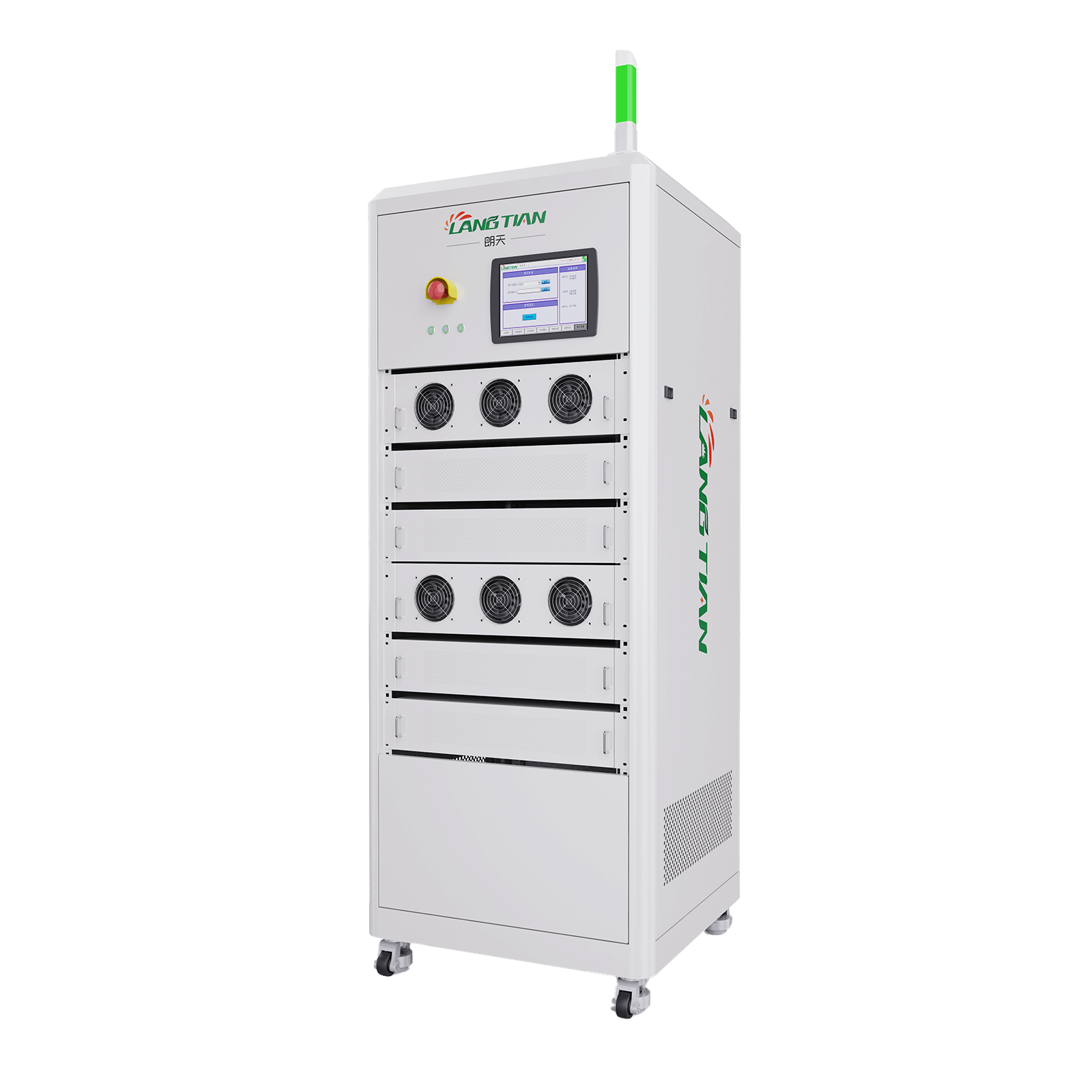

Front view of Langtian battery analyzer 60A for battery capacity tester

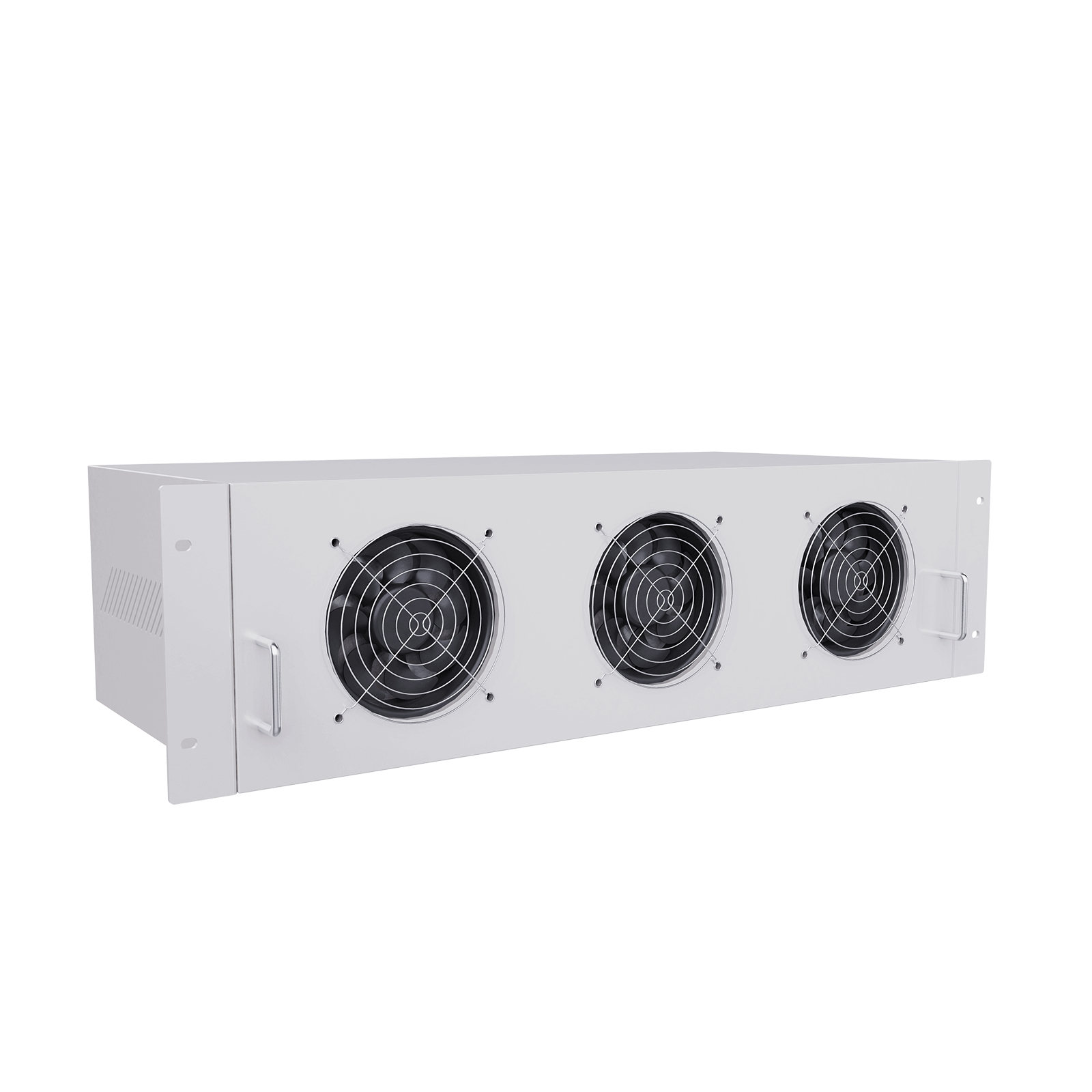

Side view of module for Langtian battery analyzer 60A

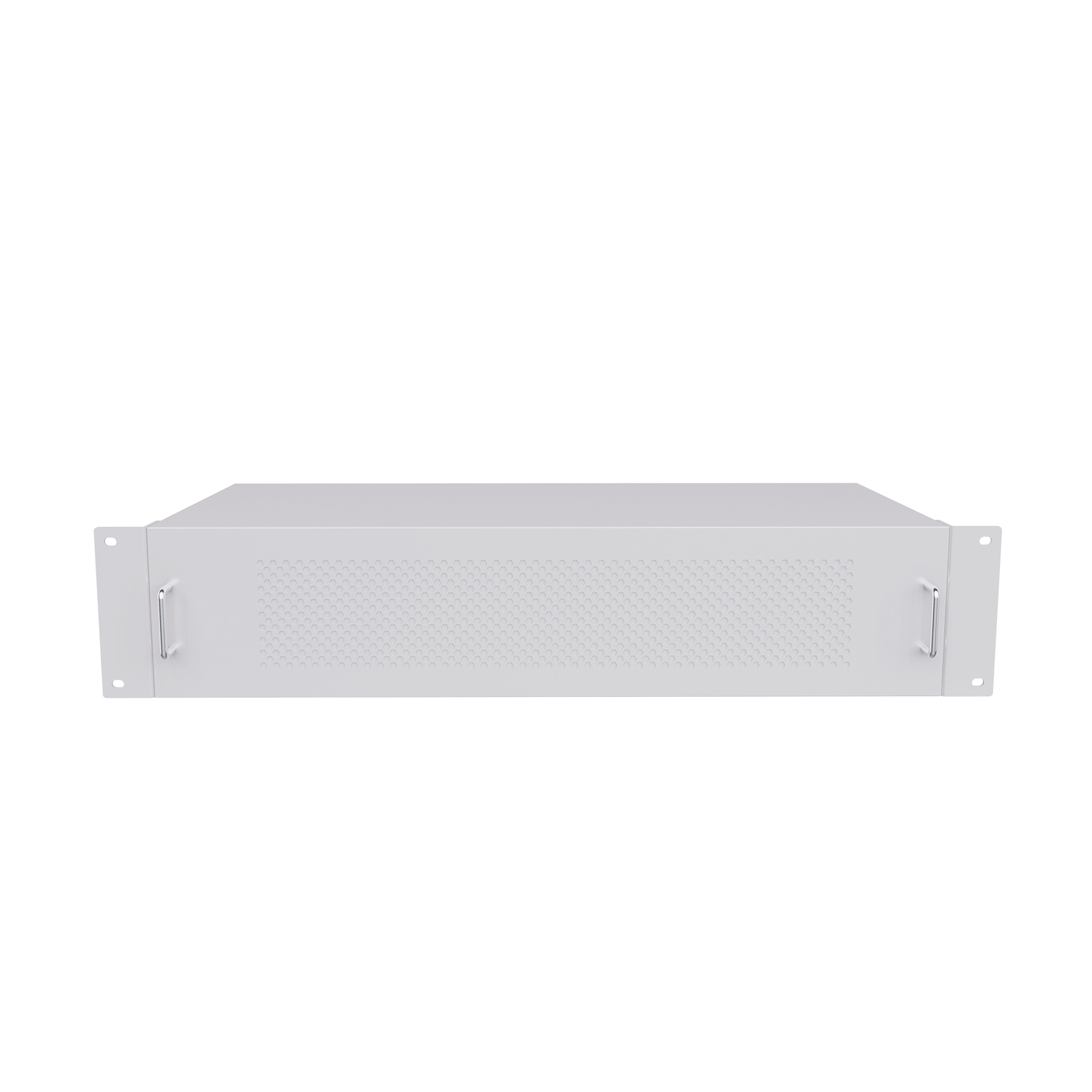

Rear view of module for Langtian battery analyzer 60A
Front view of Langtian battery analyzer 60A for battery capacity tester
Side view of module for Langtian battery analyzer 60A
Rear view of module for Langtian battery analyzer 60A

5V Battery Analyzer 60A 16CH

Min. Order: 1 piece

  • Suitable for performance testing of large cylindrical, pouch, and prismatic cells, meeting the diverse needs of battery manufacturers, universities, and research institutes.
  • Equipped with SMBus/12C communication.
  • Modular design with 16 independent channels per unit.
  • Supports channel parallel connection and DBC file import, editing, and export.
  • Capable of cycle life testing, rate charge/discharge, pulse simulation, and DCIR tests.
  • Supports multiple charge/discharge modes: constant current, constant voltage, CC-CV, constant power, and constant resistance.
  • Features safety protections including power-off protection, offline testing, and overheat protection.
  • Enables energy regeneration from discharging, supplying other channels or feeding back to the internal grid.
  • Charge/discharge system and environmental chambers can be centrally controlled via PC.
Product Features
  • Voltage Accuracy: ±0.025%FS ±0.025%RD
  • Current Accuracy: ±0.05%FS
  • Data Recording Frequency: 100Hz
  • Current Response Time (10%FS to 90%FS): < 10ms
  • Resolution: 16-bit AD
  • Offline Mode: 1GB storage
  • Test Safety: Ensured
  • Data Security: Ensured
  • Energy-saving Inverter: Included
Product Specification
Model LCT-5V60A-16CH
Current Range 0.5A – 60A
Current Accuracy ±0.05% of FS
Voltage Range 25mV – 5V
Voltage Accuracy ±0.025%FS ±0.025%RD
Response Time < 10ms
Sampling Rate 10Hz
Max Power/Channel 300W
Stability ±0.2% of FS
Energy Efficiency Charging ≥ 85%; Discharging ≥ 80%
Charge Modes CC, CV, CC-CV, CP, CR, Pulse
Discharge Modes CC, CV, CC-CV, CP, CR, Pulse, DC
Cut-off Conditions Voltage, Current, Time, Capacity, Energy, -△V
IR Test Supported
System Details
  • Suitable for performance testing of large cylindrical, pouch, and prismatic cells, meeting the diverse needs of battery manufacturers, universities, and research institutes.
  • Equipped with SMBus/12C communication.
  • Modular design with 16 independent channels per unit.
  • Supports channel parallel connection and DBC file import, editing, and export.
  • Capable of cycle life testing, rate charge/discharge, pulse simulation, and DCIR tests.
  • Supports multiple charge/discharge modes: constant current, constant voltage, CC-CV, constant power, and constant resistance.
  • Features safety protections including power-off protection, offline testing, and overheat protection.
  • Enables energy regeneration from discharging, supplying other channels or feeding back to the internal grid.
  • Charge/discharge system and environmental chambers can be centrally controlled via PC.
Main Function
The SCT-60A-16CH Battery Tester is a high-precision 5V 60A analyzer designed for advanced battery testing in research, manufacturing, and laboratory environments. It supports multiple test ranges suitable for Li-ion, LiFePO₄, and solid-state batteries, making it ideal for evaluating performance and reliability. This tester is especially effective for high-current applications such as e-bikes, e-scooters, power banks, laptops, and solar generators, providing accurate data to optimize battery development and quality control.
